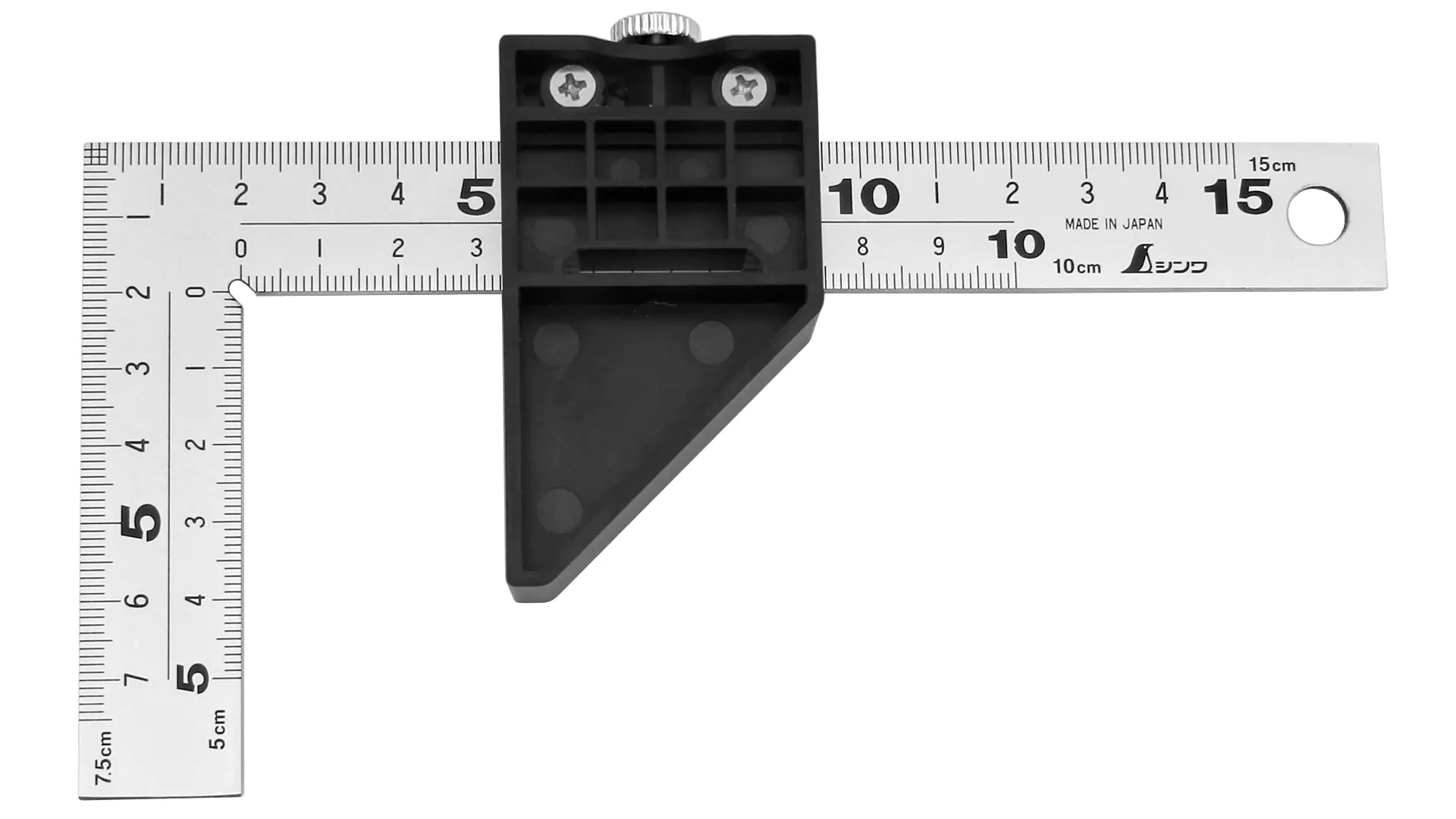

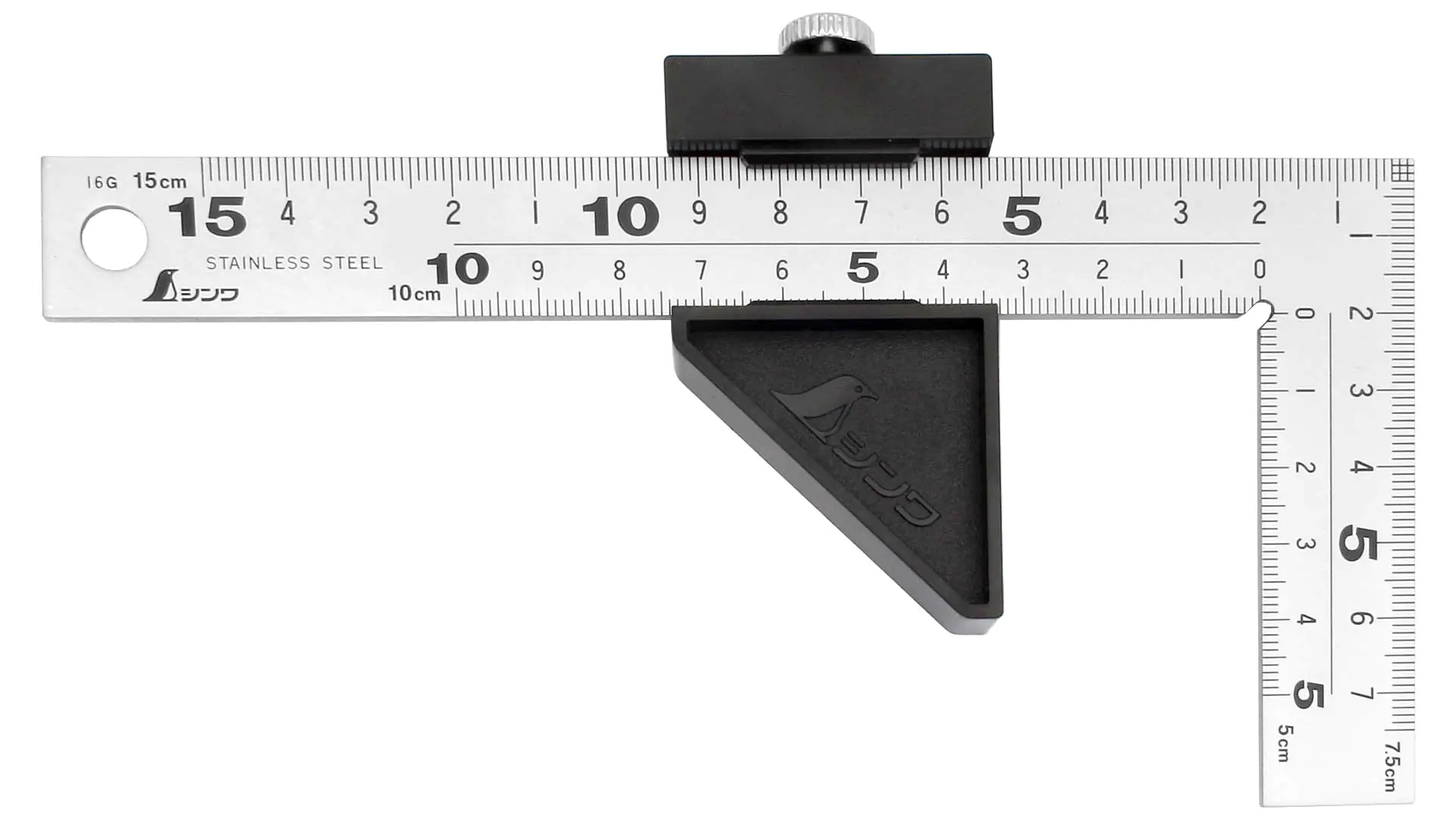

Japanese Mini Carpenter’s Square
15 cm cross section 20 x 2 mm with Plastic Stopper SHINWA
€35.90*
Available, delivery time: 1-3 businessdays within Germany
Product number: 311116
Product information
Measuring range outside up to 15 cm, inside up to 7.5 cm
Made from stainless steel, rust-free. The graduation is deeply etched and easy to read.
Satin chrome finish.
Perpendicularity: less than 0.1 mm deviation per 100 mm length
The stop side is 71 mm long and rests with a depth of 7.5 mm on the workpiece.
Total dimensions of the stopper 75 × 40 × 14 mm
- Material cross-section 20 × 2 mm
- Outside scale long leg 150 mm
- Inside scale long leg 100 mm
- Outside scale short leg 75 mm
- Inside scale short leg 50 mm
- Total length long leg 170 mm
- Total length short leg 85 mm
- With hole Ø 8 mm for hanging
| Specifications | |
|---|---|
| Stopper side | 71 mm |
| Overall dimensions of the stopper | 75 × 40 × 14 mm |
| Material cross-section | 15 × 1 mm |
| Scale of short leg | 75 mm |
| Scale of long leg | 150 mm |
