Japanese Mini Carpenter’s Square
15 cm cross section 20 x 2 mm with Metal Stopper SHINWA
10% Discount
10% Discount
10% Discount
€43.11*
€47.90*
You save €4.79!
Available, delivery time: 1-3 businessdays within Germany
Product number: 311355
Product information
Measurement ranges: external up to 15 cm, internal up to 7.5 cm
Made of stainless steel, rustproof. The graduation is deeply etched and easy to read.
Satin chrome finish.
Squareness: less than 0.1 mm deviation per 100 mm length
- Material cross-section 20 × 2 mm
- External scale long leg 150 mm
- Internal scale long leg 100 mm
- External scale short leg 75 mm
- Internal scale short leg 50 mm
- Total length long leg 170 mm
- Total length short leg 85 mm
- With hole Ø 8 mm for hanging

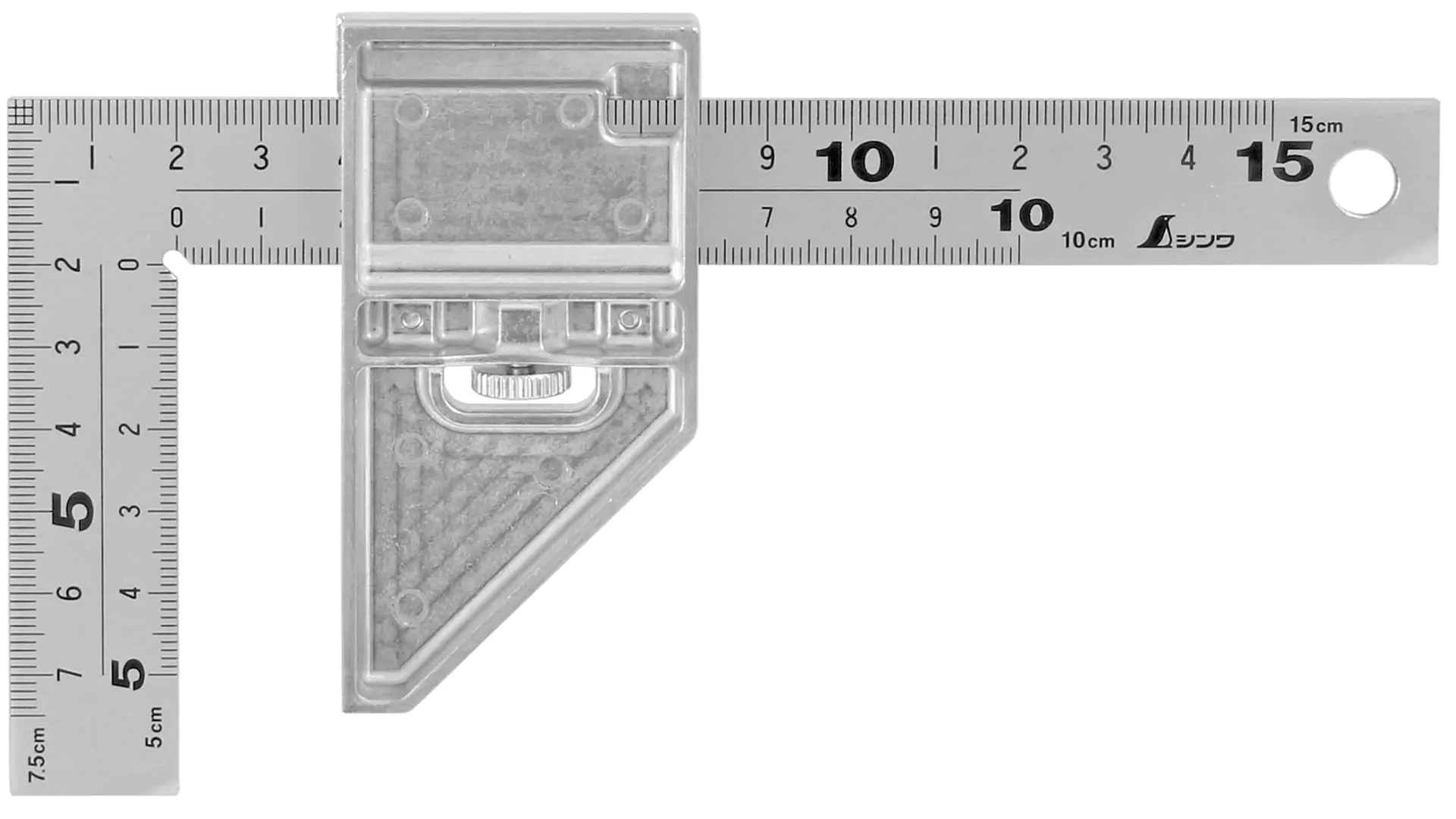

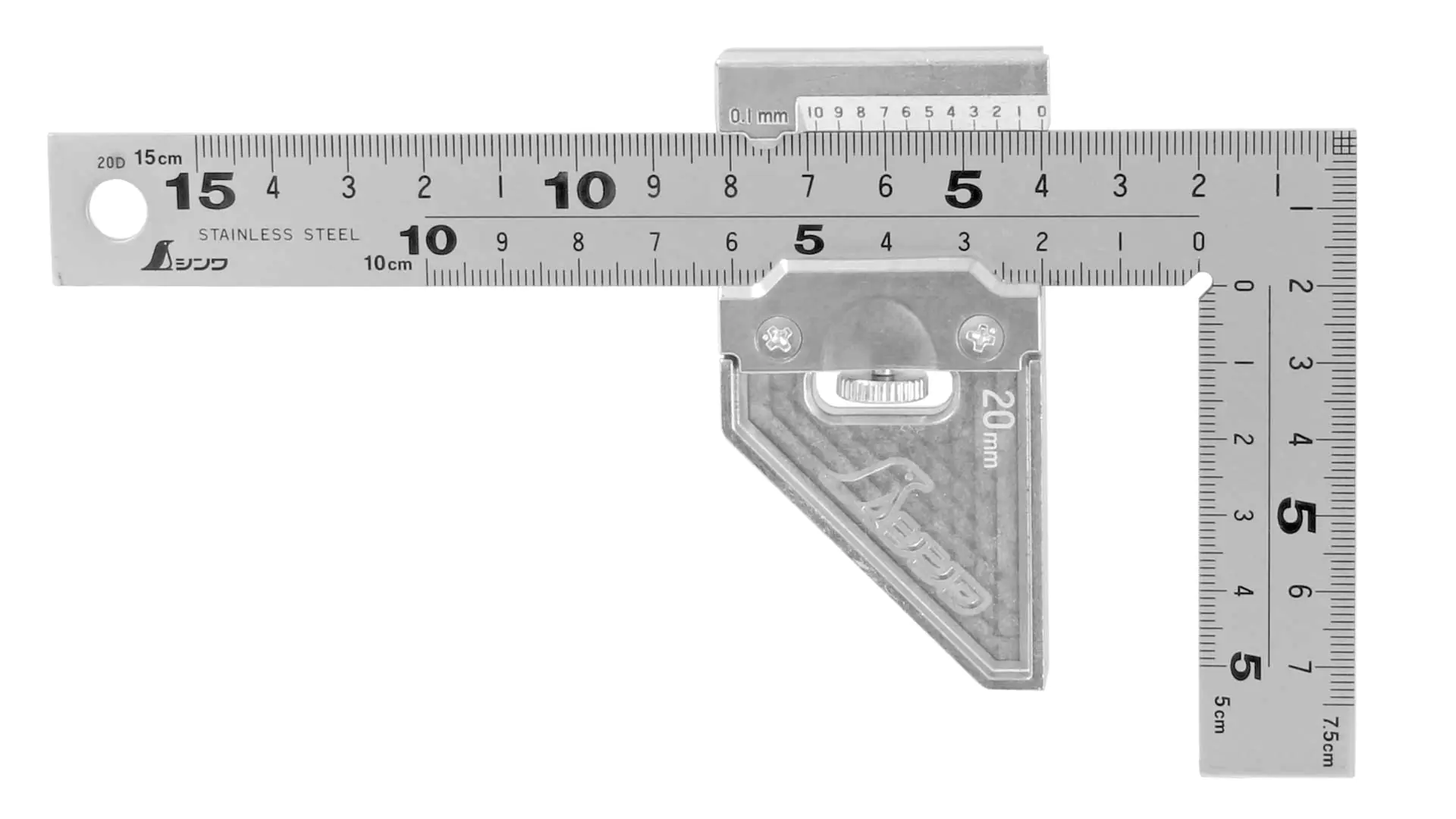

Equipped with a metal stop block. This allows the angle to be used as a marking gauge. The stop can be adjusted by loosening the knurled screw.
The stop side is 83 mm long and rests with a depth of 6.5 mm against the workpiece.
Overall dimensions of the stopper 83 × 43 × 12 mm
| Properties | |
|---|---|
| Stopper Side | 83 mm |
| Overall Stopper Dimension | 83 × 43 × 12 mm |
| Material Cross-Section | 15 × 1 mm |
| Scale Short Arm | 75 mm |
| Scale Long Arm | 150 mm |
