Japanese Midi Framing Square
30 cm cross section 20 x 2 mm with Plastic Stopper SHINWA
€46.90*
Available, delivery time: 1-3 businessdays within Germany
Product number: 311117
Product information

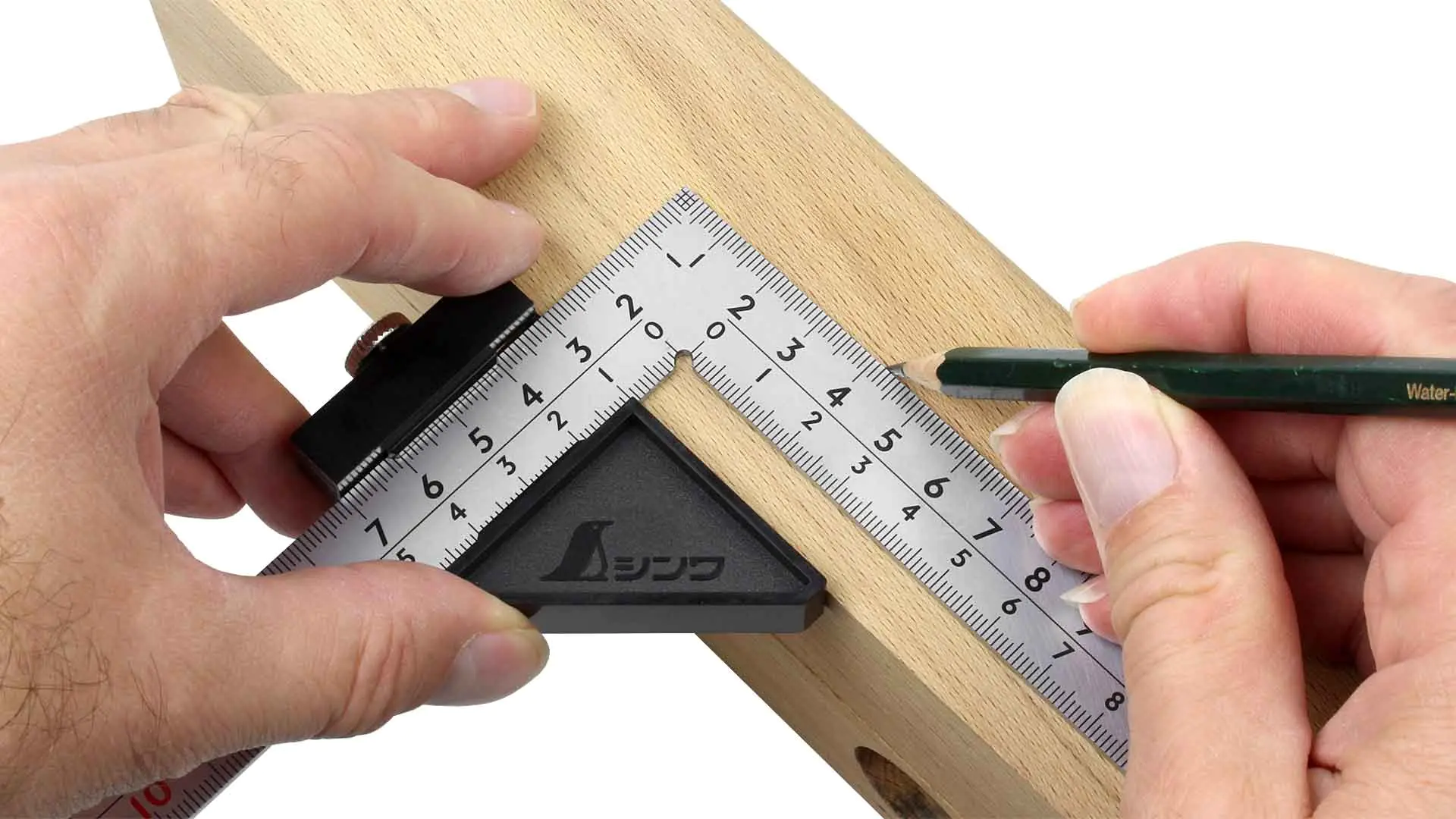

Very easy-to-read rigid angle with a stop made of plastic. This angle can be used as a precise marking gauge. The stop can be adjusted by loosening the knurled screw.
The stop side of the stopper is 71 mm long and rests against the workpiece with a depth of 7.5 mm.
Total dimensions of the stopper 75 × 40 × 14 mm
With a hole Ø 8 mm for hanging
| Features | |
|---|---|
| Outer scale short leg | 150 mm |
| Outer scale long leg | 300 mm |
| Total length short leg | 160 mm |
| Total length long leg | 320 mm |
| Inner scale short leg | 100 mm |
| Inner scale long leg | 250 mm |
| Hole Ø | 8 mm |
| Material cross-section | 20 × 2 mm |
