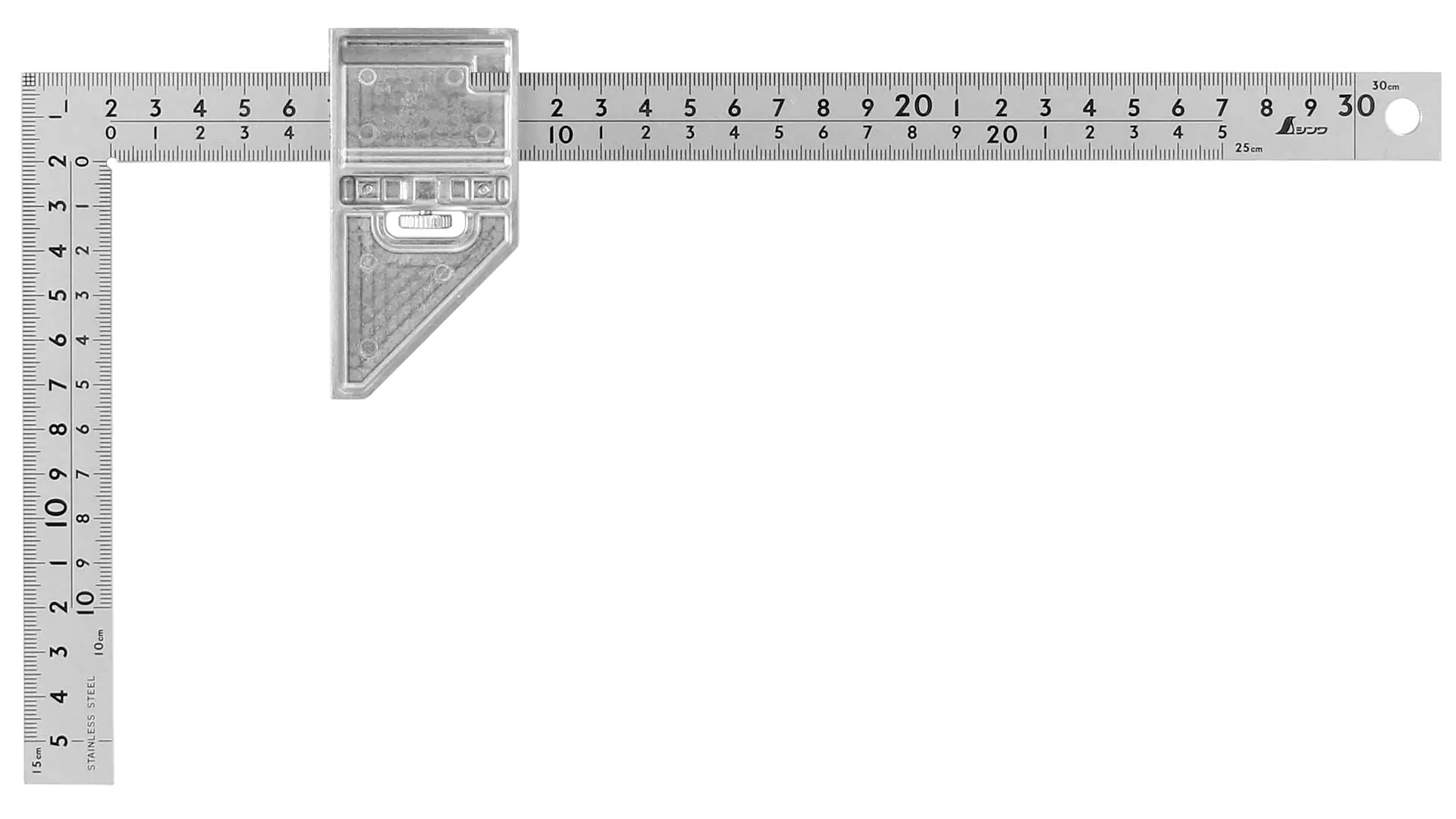

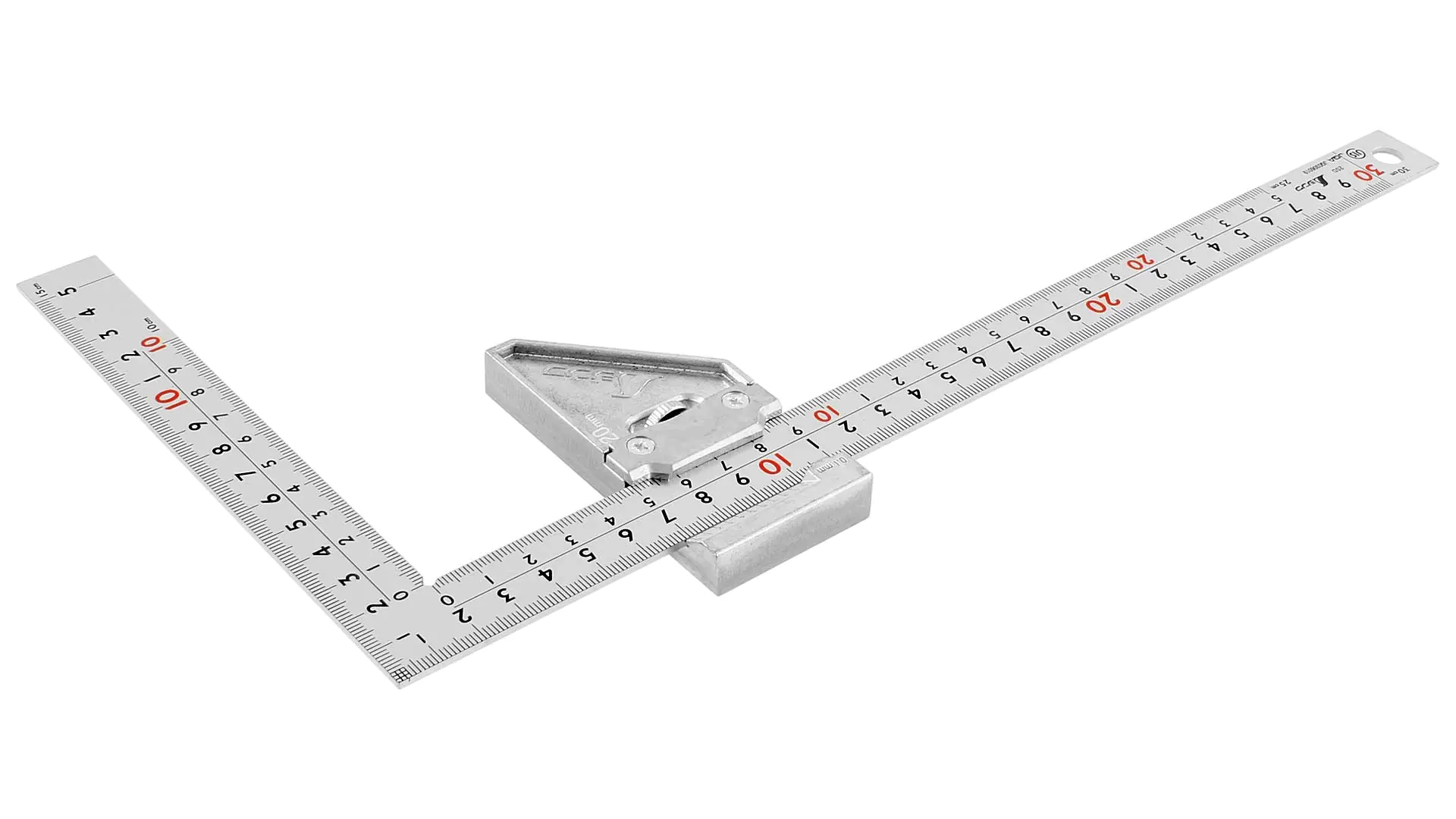

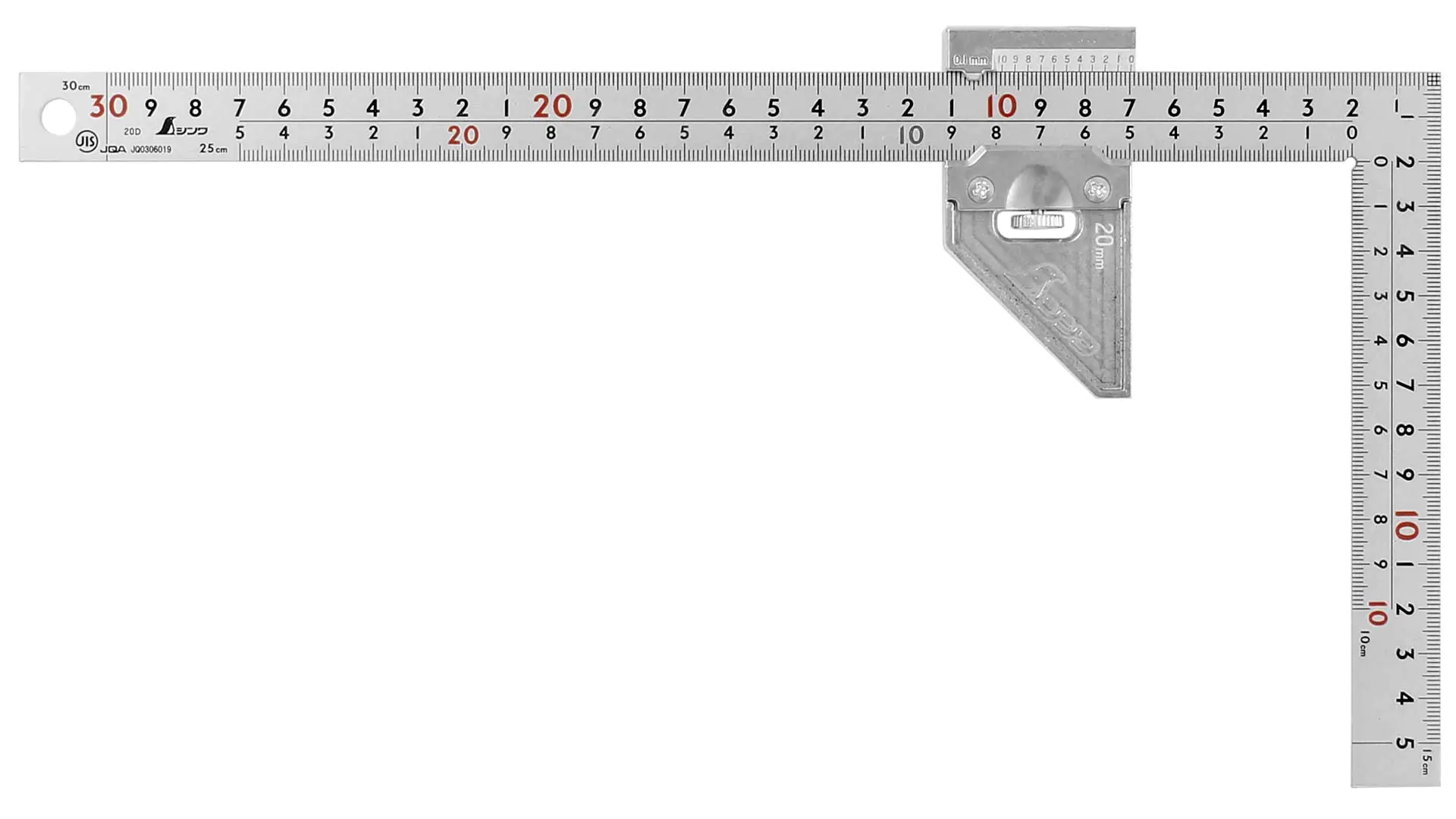

Japanese Midi Framing Square
30 cm cross section 20 x 2 mm with Metal Stopper SHINWA
€59.90*
Available, delivery time: 1-3 businessdays within Germany
Product number: 311354
Product information
Very easy-to-read rigid angle with a metal stop. This allows the angle to be used as a precise marking gauge. The stop can be moved after loosening the knurled screw.
The stop side is 83 mm long and rests against the workpiece with a depth of 6.5 mm.
Overall dimensions of the stopper 83 × 43 × 12 mm
With hole Ø 8 mm for hanging
| Properties | |
|---|---|
| Outside scale short leg | 150 mm |
| Outside scale long leg | 300 mm |
| Total length short leg | 160 mm |
| Total length long leg | 320 mm |
| Inside scale short leg | 100 mm |
| Inside scale long leg | 250 mm |
| Material cross-section | 20 × 2 mm |
