T-Track length
610 mm JUUMA
€12.90*
Available, delivery time: 2-3 days
Product number: 353100
Product information

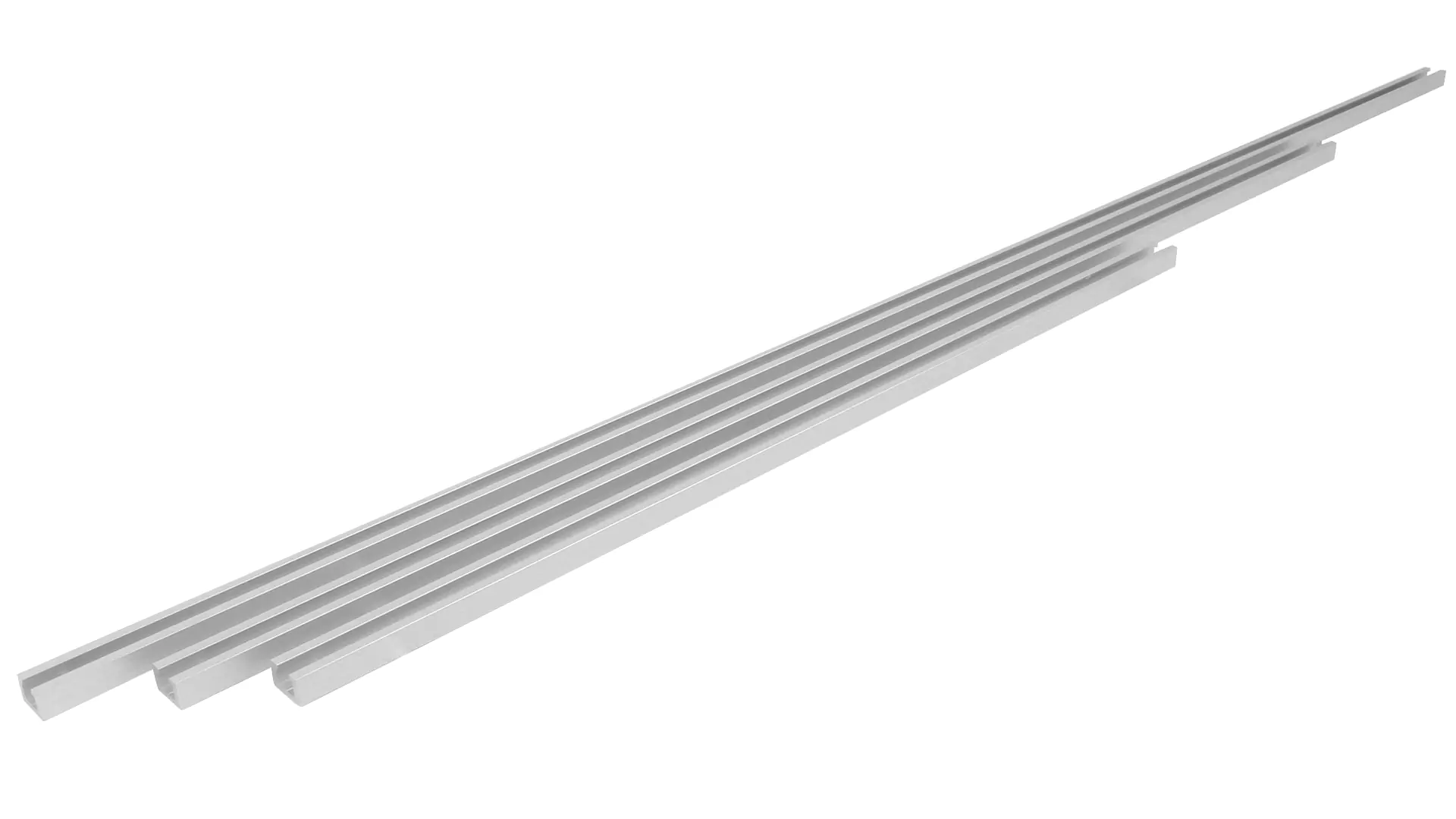

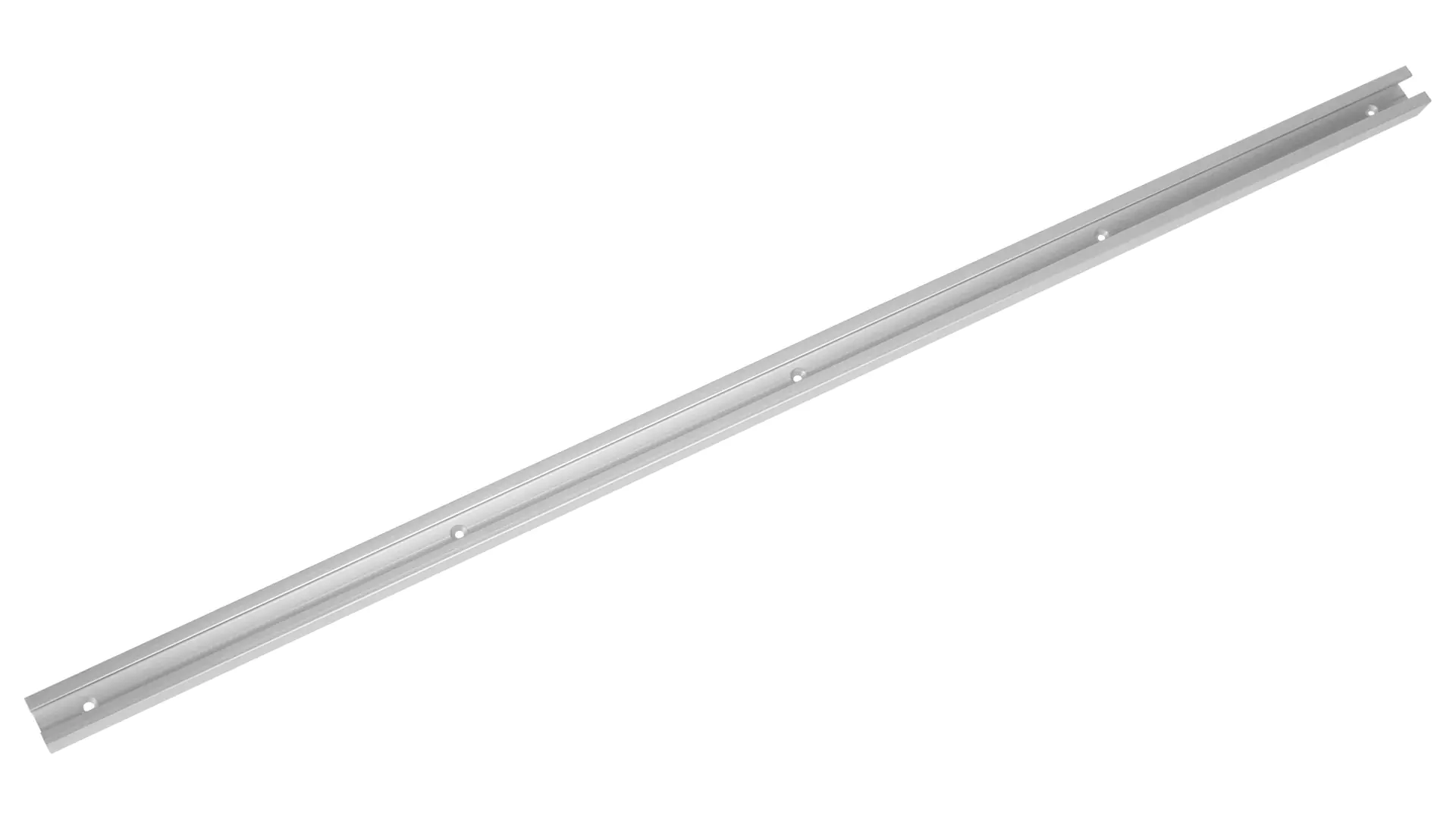

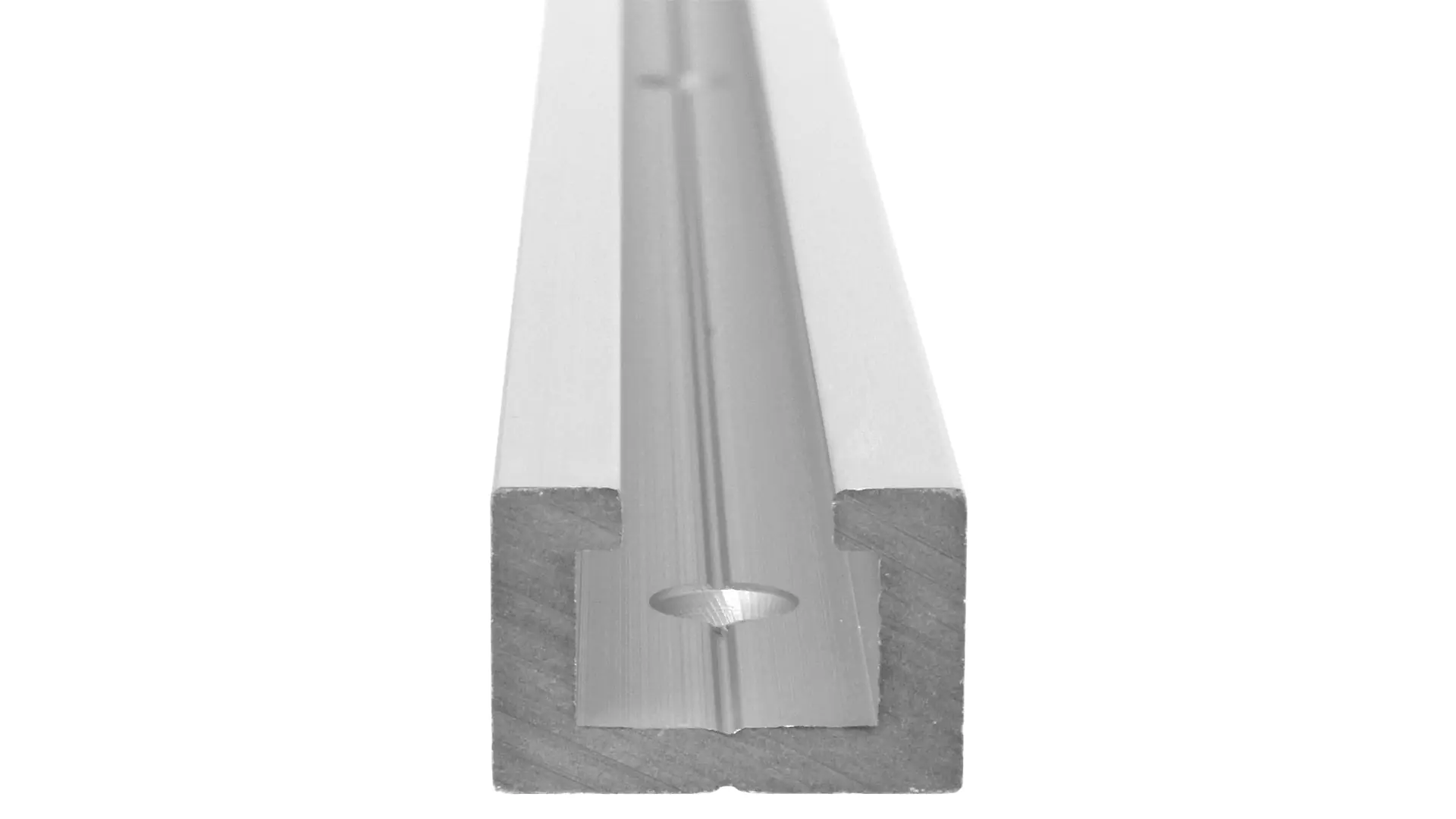

T-slot rails as components for building adjustable stops, router tables, and other workshop jigs are becoming increasingly popular due to their universal applicability. The new JUUMA T-slot rails made from aluminum are fully compatible with accessories featuring a 6 mm metric thread.

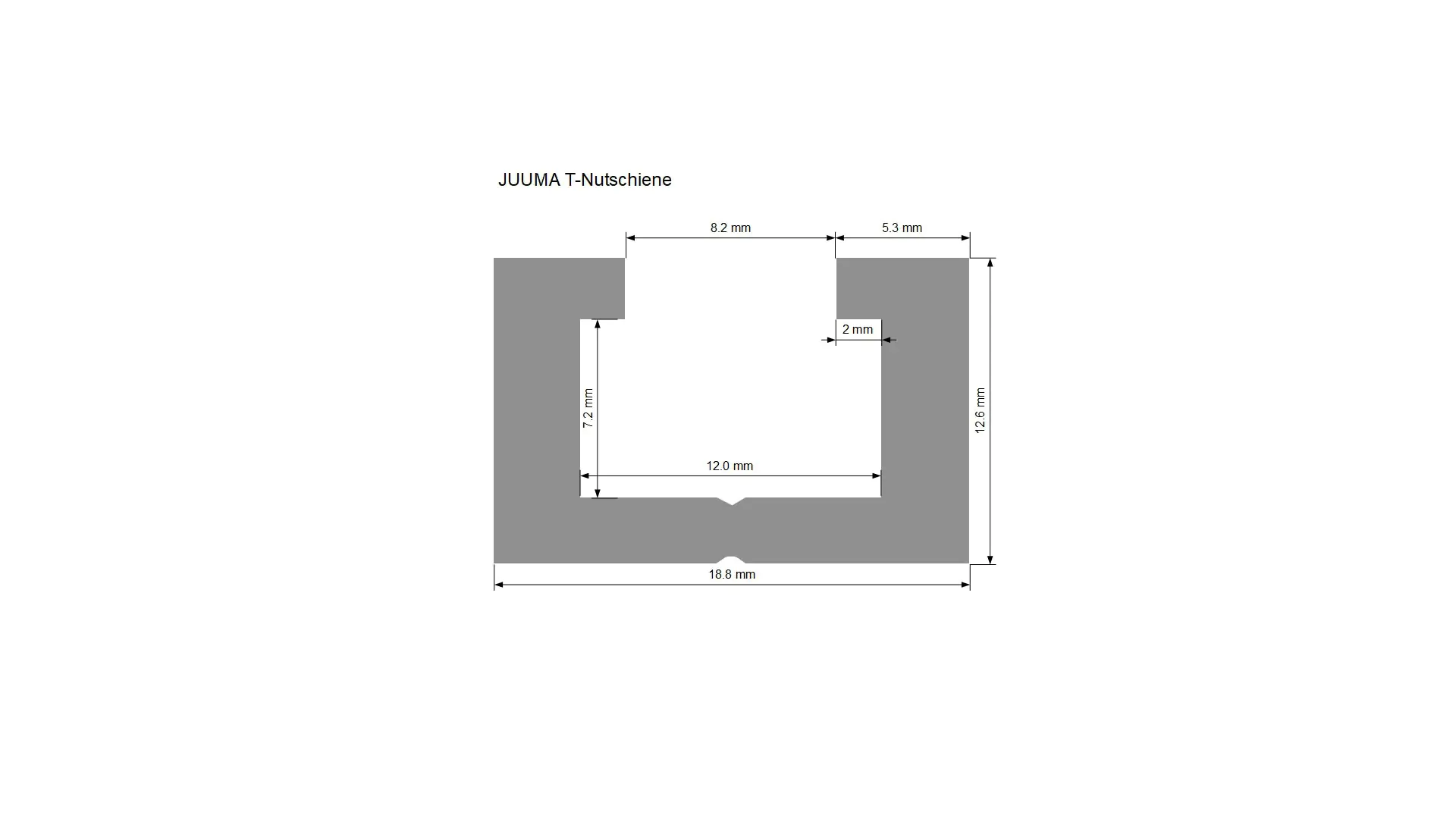

These rails are 18.8 mm wide and 12.6 mm deep.
Length tolerance ±3 mm.
The hole spacing for mounting in a groove is 143 mm.
Delivered with the necessary amount of PH2 countersunk screws 15 × 3.2 mm.
| Properties | |
|---|---|
| Length | 610 mm |
| Width | 18.8 mm |
| Length Tolerance | ±3 mm |
| Hole Spacing | 143 mm |
| Material | Aluminum |
| Screws | PH2 Countersunk Screws 15 × 3.2 mm |
| Depth | 12.6 mm |
