Hold Down for T-Slot Tracks
VERITAS
€17.90*
Available, delivery time: 2-3 days
Product number: 325630
Product information

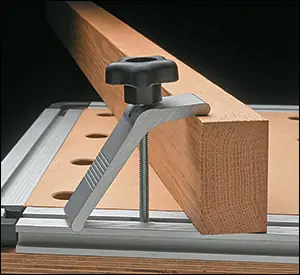

This versatile toggle clamp allows you to secure workpieces at any point along a T-slot track. It consists of an aluminum arm and a steel screw. Tightening the screw clamps the arm, simultaneously securing the workpiece on the work surface and the screw in the T-slot track.
The maximum clamping height is 25 mm (1 inch) when using the long arm to clamp the workpiece. If you use the short arm, you can clamp a workpiece up to 50 mm (2 inches) high. The asymmetrical shape of the clamping arm provides 66 mm (2-5/8 inches) or 28 mm (1-1/8 inches) of lateral space.
| Properties | |
|---|---|
| Material | Aluminum, Steel |
| Maximum clamping height | 50 mm |
