Circular Saw Guide Free-Angle 30cm
SHINWA
Available, delivery time: 2-3 days
Product information

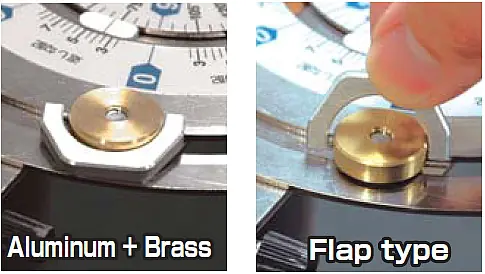

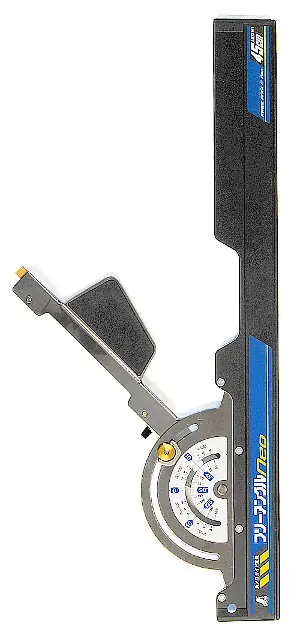

This precisely adjustable guide rail can be used with any circular saw. Any angled cuts between 15° and 165° can be done easily and simply. A rubber pad on the underside of the black hand rest effectively prevents slipping on the material being cut. The protractor plate has a diameter of 165 mm and is made of stainless steel. The black scale on a white background allows for easy reading of the angle degrees. The stop and rail are made of lightweight aluminum, which ensures fatigue-free work even during extended use. The weight is 700 g for the 45 cm rail and 620 g for the 30 cm rail. The edge of the rail is made of stainless steel. The end edges of the rail are protected by plastic caps. The angle setting is fixed using a steel screw with a large brass nut and a foldable handle part made of aluminum. For better positioning of the circular saw or jigsaw on the workpiece, the rail extends 14 cm beyond the workpiece in the 90° setting. The rail itself is 65 mm wide and 7 mm high. The underside stop that rests against the wood is hollow and equipped with a knurled screw. A strip measuring 10 × 4 mm (included) can be inserted into this hollow stop and secured with the knurled screw. This allows you to determine the distance between the rail and the saw cut edge once, so that you always know the distance from the line you need to maintain for future cuts.
| Properties | |
|---|---|
| Overall dimensions at 90 degrees | 465 × 355 × 20 mm |
| Total length | 465 mm |
| Weight | 620 g |
| Maximum workpiece width at 90° | 300 mm |
| Rail cross-section | 65 × 7 mm |
