Safety and Dust Cover for STAR-M Circle Cutters

This Safety and Dust Cover fits:

  • STAR-M Circle Cutter no. 36 High Speed Steel, our code 312210
  • STAR-M Circle Cutter no. 36T TCT, our code 312208
  • STAR-M Quick Adjustable Circle Cutter no. 5010 High Speed Steel, only hole diameter 120 mm up to 150 mm, our code 319370
  • STAR-M Quick Adjustable Circle Cutter no. 5010T TCT, only hole diameter 120 mm up to 150 mm, our code 319375
  • STAR-M Small Circle Cutter no. 5010A High Speed Steel, our code 319380

Safety and Dust Cover
This dust cover for STAR-M Circle Cutters has an inside diameter of 165 mm, an outside diameter of 200 mm and an inner depth of 125 mm.

Adapter
When using with the STAR-M circle cutters, you do not need the adaptor, which comes with the cover. The adaptor is necessary, when you use the cover with other boring tools.
Total length 95 mm
Shaft diameter 10 mm
Required shaft diameter of bit 10 mm
Depth of hole for bit 44 mm

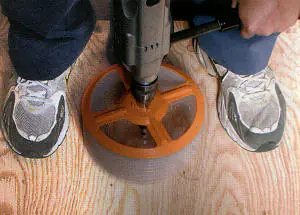

Example

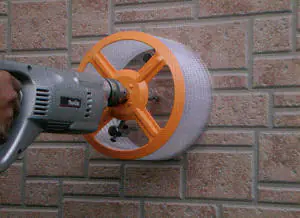

Example

Safety and Dust Cover

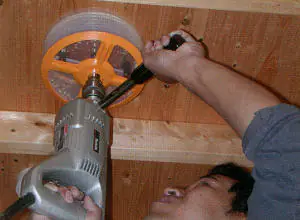

Example
