INCRA Miter V27

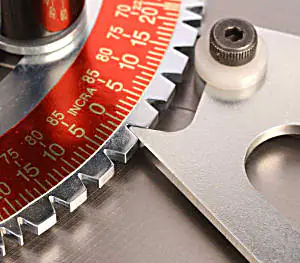

The NEW INCRA Miter V27 is engineered to provide a high performance, yet low cost upgrade for your Table Saw, Band Saw, Router Table, Disk Sander, Belt Sander or any other tool in need of a better miter gauge. Like all INCRA Miter Gauges, the V27 delivers extreme miter cutting accuracy through the advanced combination of INCRA's exclusive AngleLOCK indexing system and its patented Adjustable GlideLOCKMiter Bar.

INCRA Miter V27
While the V27 delivers ALL of the accuracy of its bigger INCRA Miter Gauge brothers, its no-nonsense design and compact size make it the most affordable Incra Miter Gauge EVER! Now, the INCRA Miter V27 makes it possible to put an INCRA Miter Gauge in EVERY standard miter channel (3/4 inch) in your shop.

MITER V27 Specifications:
27 positive angle stops
GlideLOCK Miter Bar with 4 expansion points
5° increments
Special stops at plus or minus 22 1/2°
Plus or minus 60┬░ range

Size of steel bar: 15-3/4 inch x 3/4 inch x 3/8 inch
(400 mm x 18.7 mm 9.5 mm)
Width slightly undersizes to fit even in near standard miter channels.
Diameter of protractor part: 6-3/4 inch (172 mm)
v27

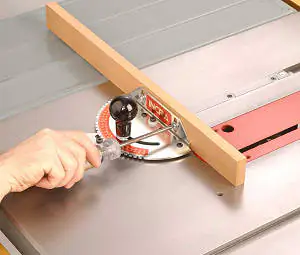

The Miter V27 Universal Mounting Bracket will support any user-made fence as well as any INCRA fence.
v27

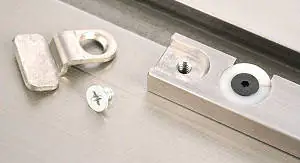

Because the Miter V27 is designed to fit in all tools with a standard 3/4 inch x 3/8 inch miter channel, the T-clip is removeable since many older or smaller tools have plain miter channels without the "T-slot".
v27

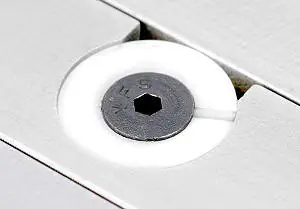

Four expansion points adjust for ZERO side play, anti-friction travel on all tools with standard (or near standard) miter gauge channels, including Delta, Craftsman, imports, etc. This means the bar WON'T wiggle around in the miter slot!
v27 detail
Detail
