Drillstand DrillMate (for 43mm
EU style drill) MILESCRAFT
€48.90*
Available, delivery time: 2-3 days
Product number: 328683
Product information

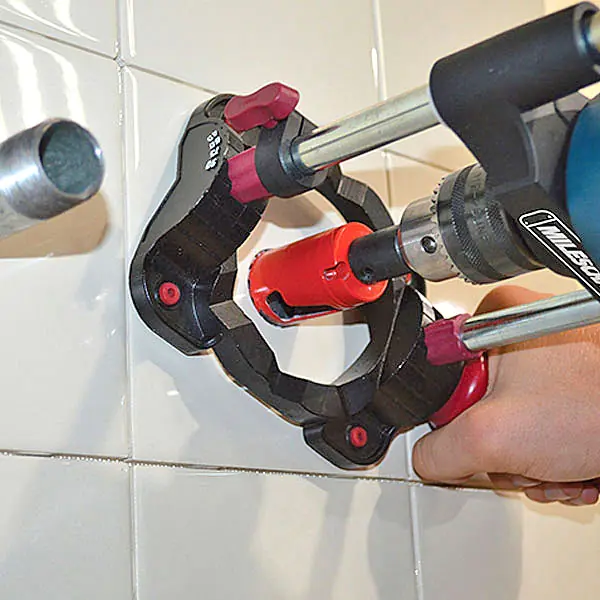

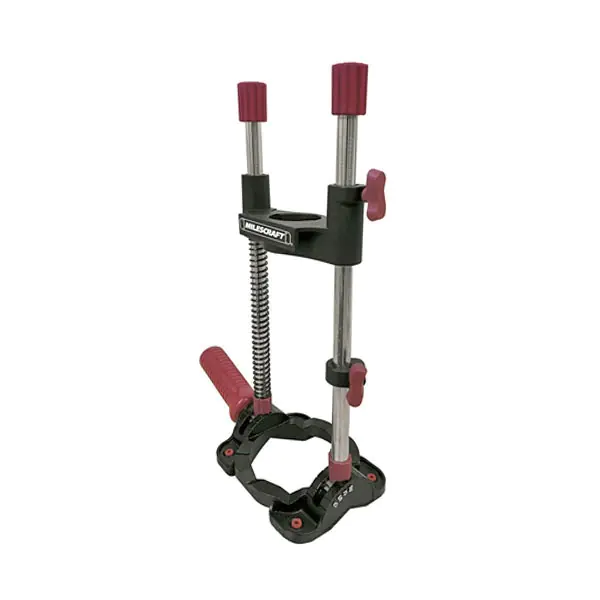

A mobile drill stand for almost anywhere, now you can always perform accurate drilling operations. The DrillMate™ drill stand allows you to easily execute right-angle holes, angled holes, edge-of-workpiece drilling, and drilling in round workpieces. Despite its relatively light weight, the results are impressive. With a handheld drill, you can drill almost like with a stationary drill press.
Metal chuck
- For accommodating drills with a 43mm Euro neck.
Innovative metal base plate with easily adjustable angles
- Self-centering base plate

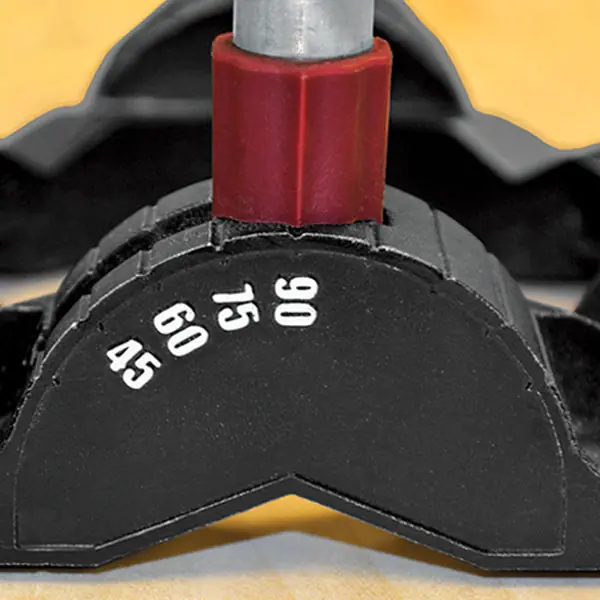

- Common angles of 45°, 60°, 75°, and 90° are easy to set and read
- V-groove for processing round workpieces
- Non-slip TPE feet provide a firm grip and protect the workpiece surface

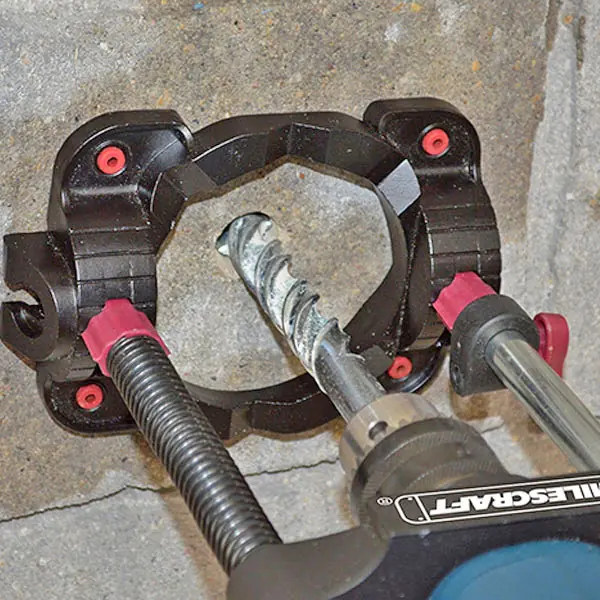

- If necessary, the drill stand can even be secured with screws (the corresponding holes are already present in the base plate)
Metal angle adjustment
- Allows fixing the drilling angle after setting
Adjustable depth stop
- For precisely repeated drilling with predetermined depth
Additional handle
- This can be attached to the base plate (see image 1 and 4) and supports a secure grip of the drill stand, even when used horizontally.

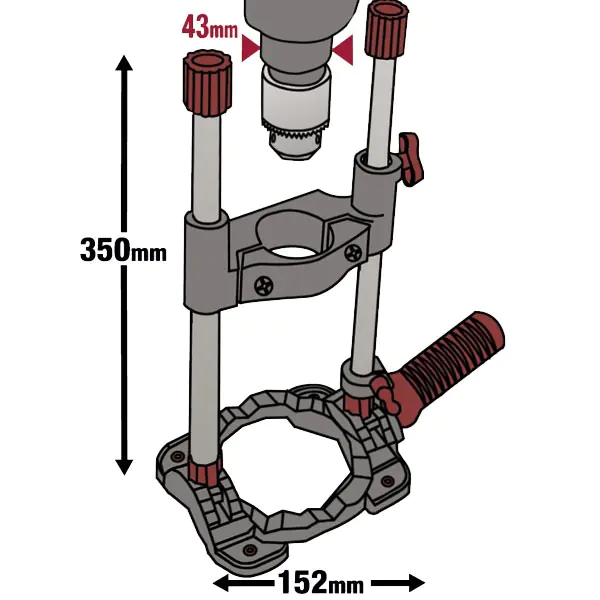

| Properties | |
|---|---|
| Diameter of the holder | 43mm (European collar holder) |
| Guide rod diameter | 14mm |
| Weight | approx. 1.65 kg |
| Base plate dimensions | 140mm x 108 mm |
| Inner distance between guide rods | 101.2mm |
| Material | Plastic, Metal |
| Opening diameter | 88mm |
| Jaw thickness | 25mm |
