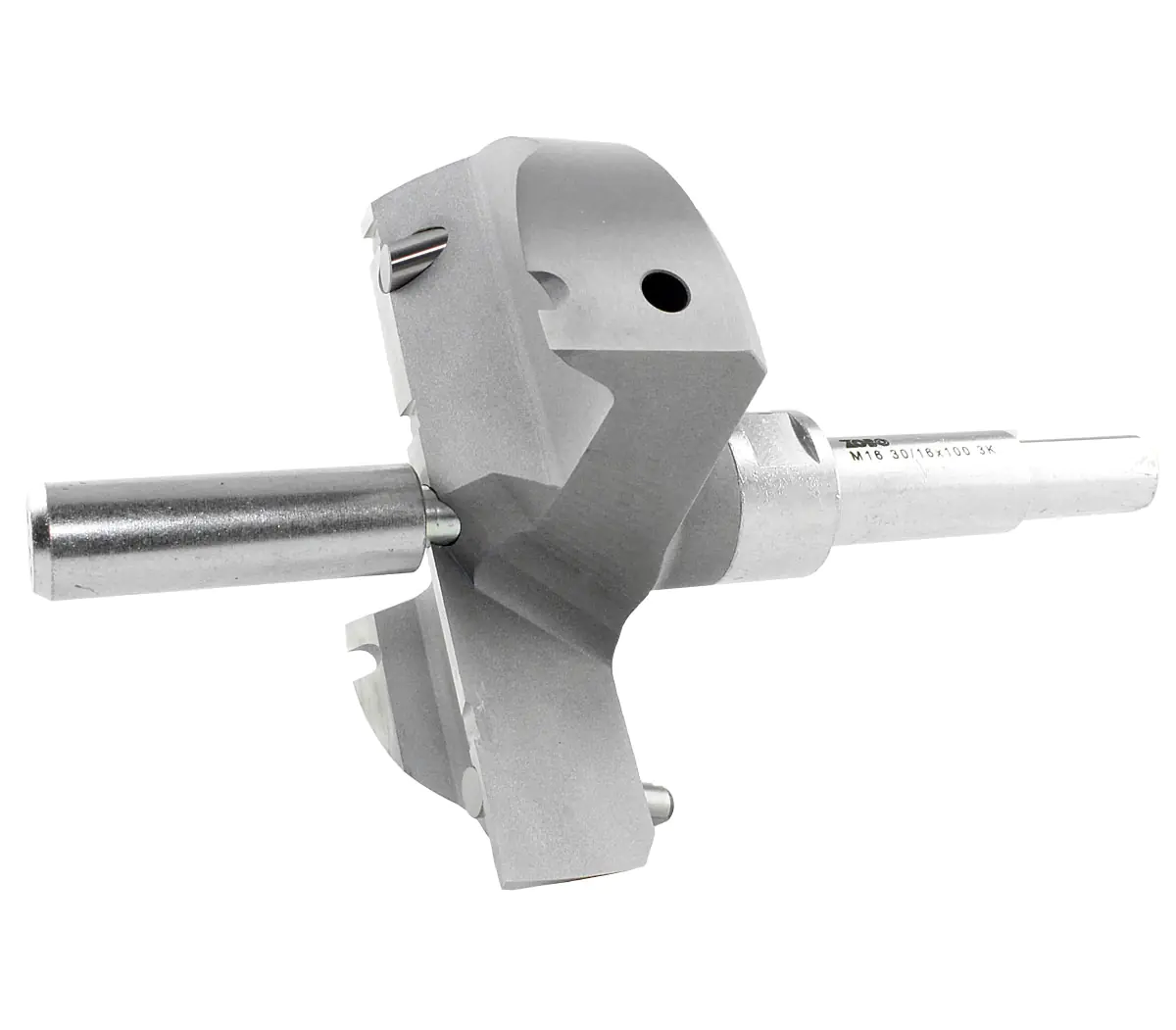

ZOBO Forstner Bit WD C 110mm TL=150mm S3
Available in 14 days, delivery time 5-20 days
Product information
The chrome steel drill WD C is suitable for soft and hardwood.
Delivery WITHOUT centering tip
Suitable centering tips, centering drills, and guide pins.
Technical Data:
Drill diameter: 101 – 130 mm
Shank diameter: 30/16 mm
Total length: 150 mm
Hole diameter for centering tool: 10 mm
Dimensions:
"

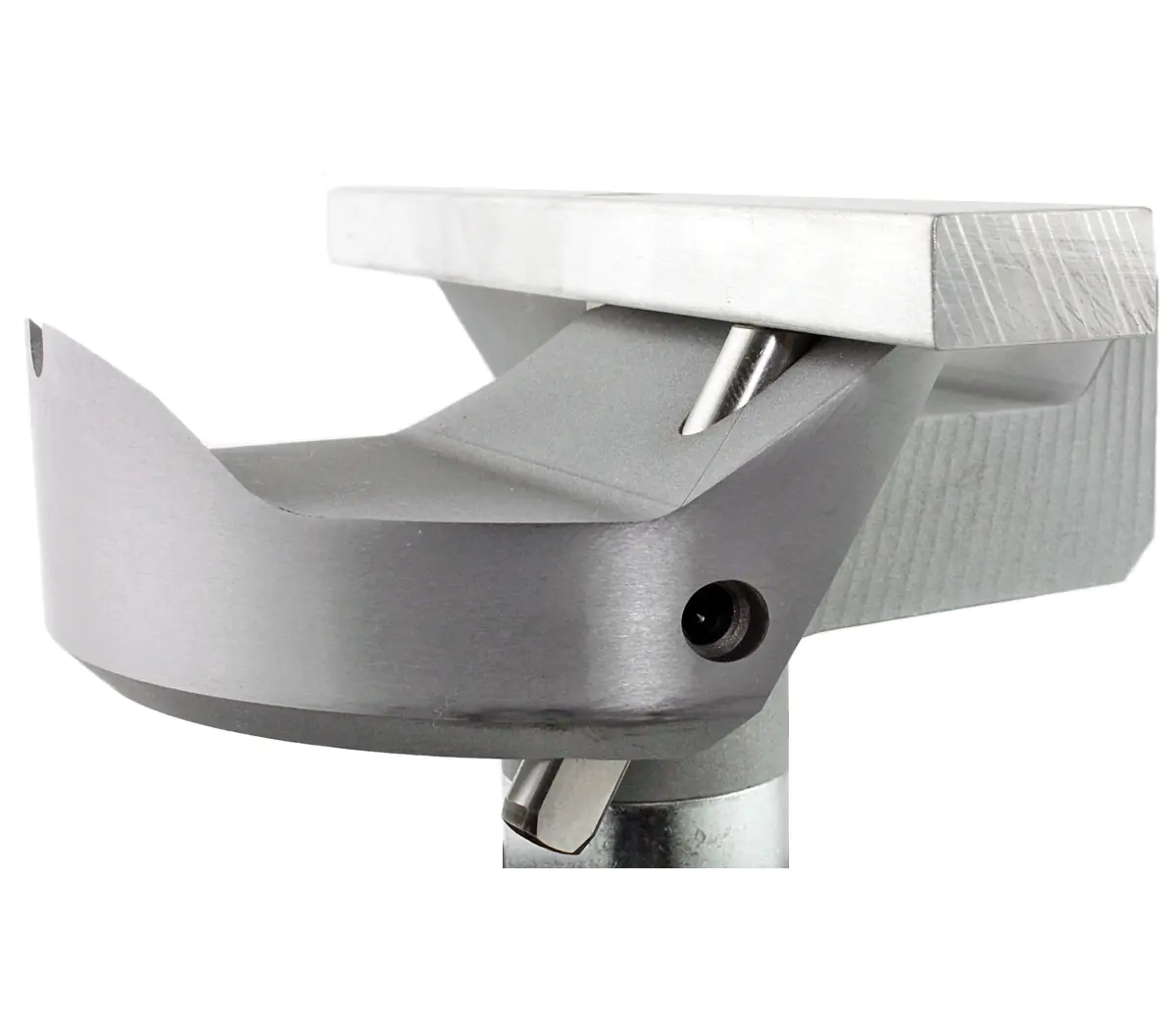

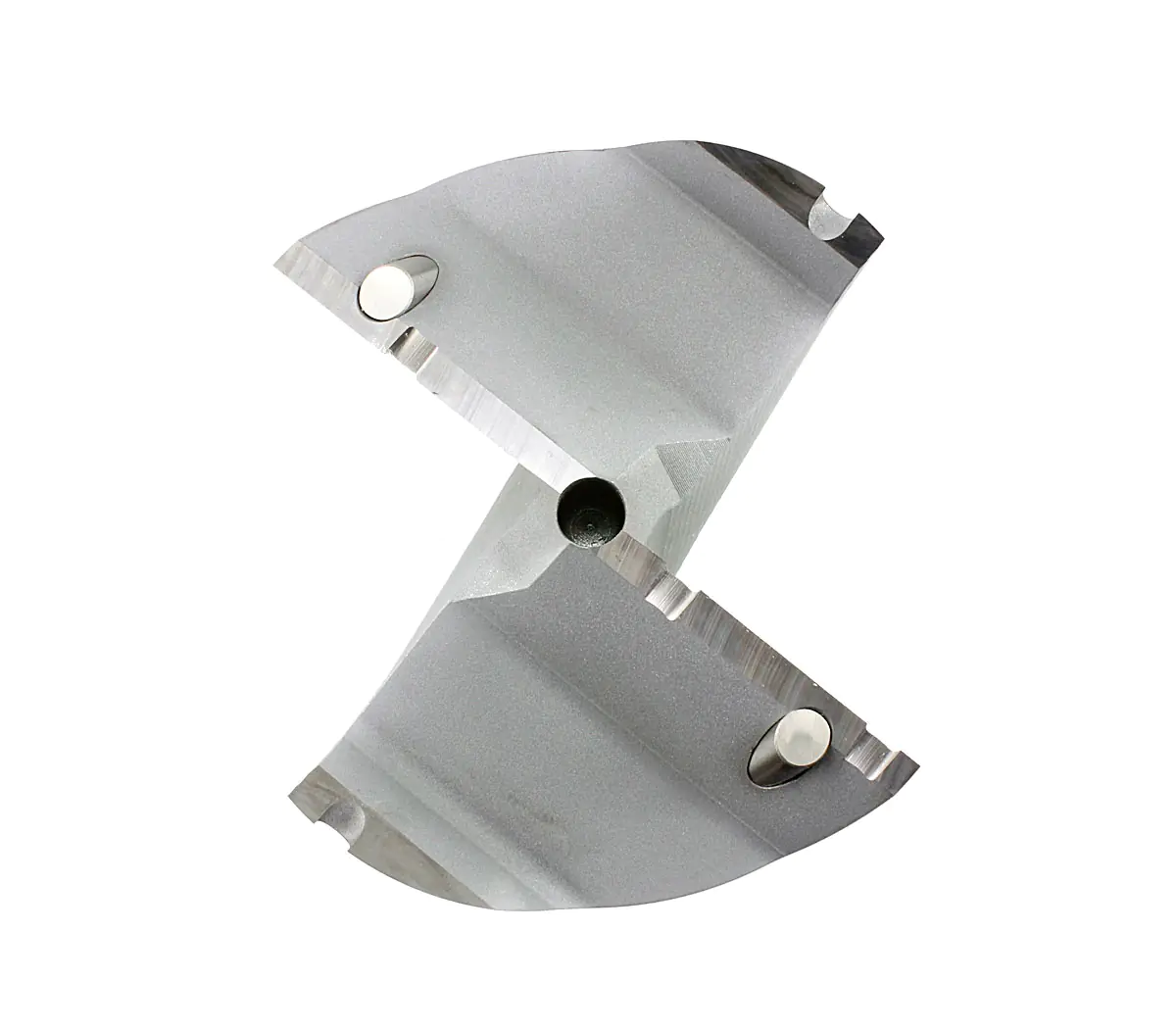

PDF 0.33 MB":pdf/zobo-s3-101-130.pdf*Important Note:* ZOBO drills of System 3 from 101 mm are equipped with chip depth limiters and chip breaker grooves. This effectively reduces the risk of the drill blades „catching” in the material and the risk of kickback on the drill’s handles. The chip depth limiter pins are set to the correct distance from the main blades using a setting gauge. The ground chip breaker grooves create shorter chips, which are better and more easily removed from the drill hole. Chip depth limiters and setting gauge are included in the delivery.
| Features | |
|---|---|
| Drill Diameter | 110 mm |
| Total Length | 150 mm |
| Hole Diameter for Centering Tool | 10 mm |
| Shank Diameter | 30/16 mm |
