Dowelling Jig with Kit for 8mm Dowels
JESSEM
Available, delivery time: 2-3 days
Product information
With this doweling jig and the corresponding bushings, you can create dowel holes with diameters of 6 mm, 8 mm, 10 mm, and 12 mm. The positions of the dowel holes can be set in fixed steps depending on the dowel diameter – perfect for arrangements of multiple rows of dowels. The built-in alignment notch allows you to transfer the positions of dowels that are further apart from one workpiece to another. The jig is made from CNC-milled and anodized aluminum. The labels and markings are laser engraved, making them very easy to read. When using the stop, the maximum possible distance from the edge of the workpiece to the center of the dowel hole is 100 mm, adjustable in a grid of 2 mm. Made by JESSEM in Canada. The distance from drill hole center to drill hole center is 16 mm. This distance can be increased in 16 mm increments by omitting individual holes.

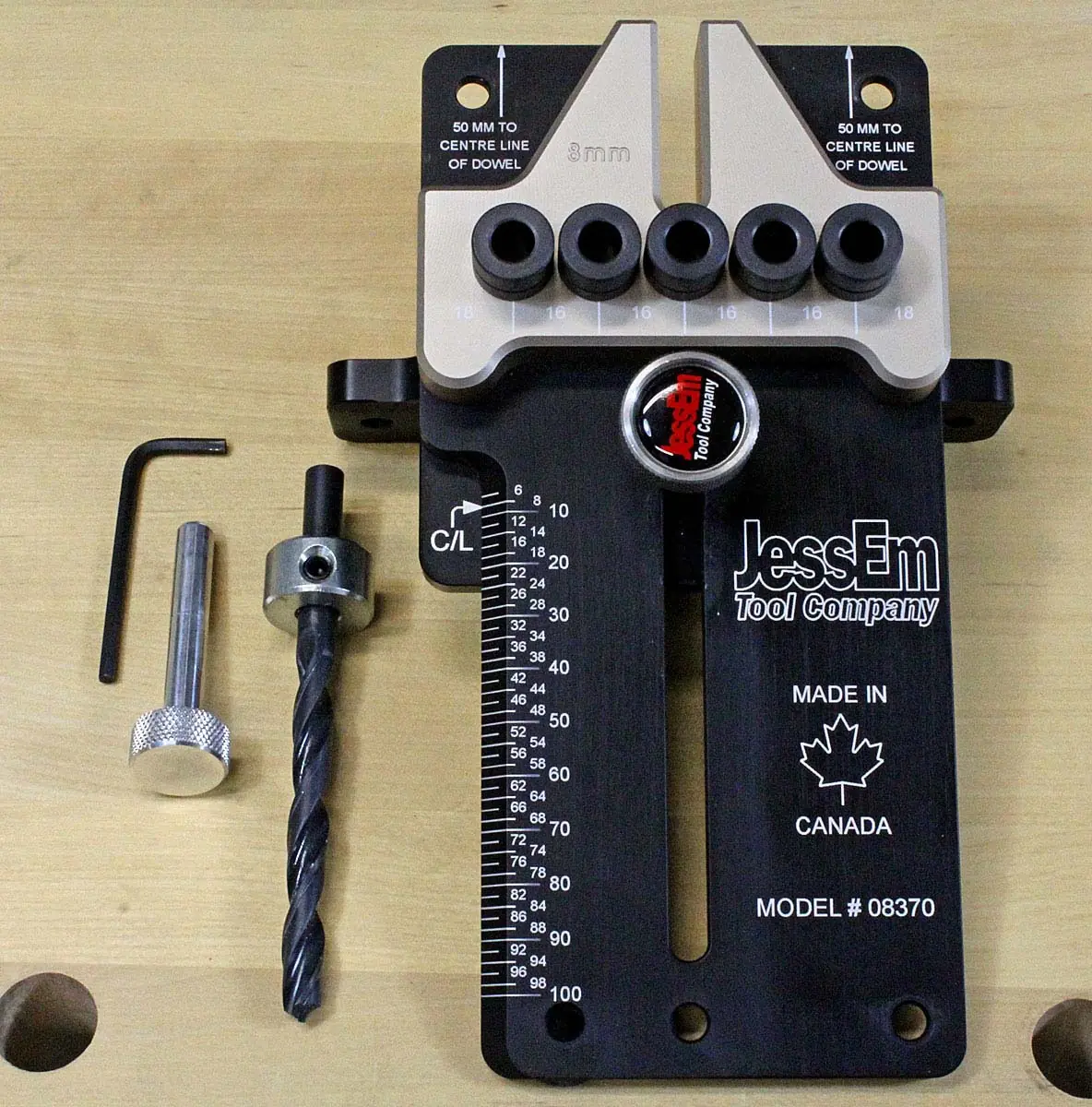

Included:
- One doweling jig
- One dowel bushing with five 8 mm drill sleeves
- One 8 mm drill bit with depth stop
- One 8 mm guide pin
- One 1/8 inch (3.2 mm) hex key
| Properties | |
|---|---|
| Hole spacing | 16 mm |
| Markings | Laser engraved |
| Material | CNC-milled and anodized aluminum |
