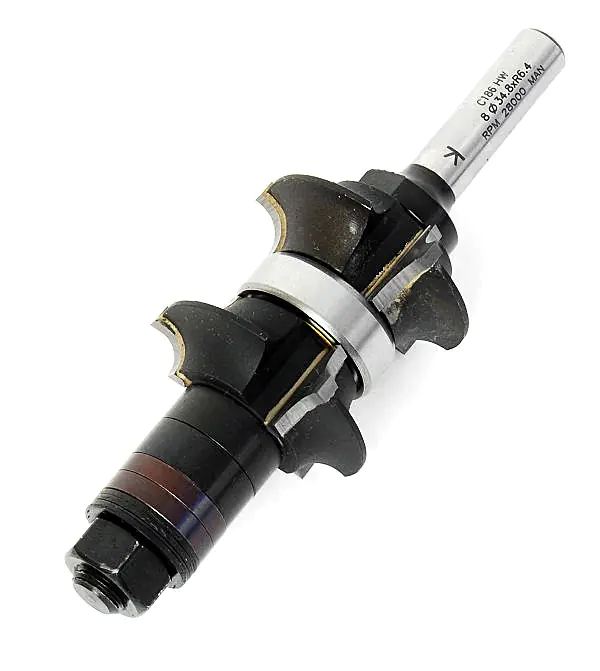

Double Roundover Cutter Assembly
TCT D=35mm R1=6.4mm R2=4.8mm B=14mm L=108mm S=8mm KLEIN
25% Discount
25% Discount
€100.43*
€133.90*
You save €33.47!
Available, delivery time: 1-3 businessdays within Germany
Product number: 362050
Product information
This tool allows you to round both edges of a board in a single operation. The ball bearing has a diameter of 22 mm.
The spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm. These allow for the processing of board thicknesses from 9.5 to 35 mm or 12.7 to 38 mm depending on the radius (see sketch).
The double-rounding cutters with guide ring from Sistemi Klein are carbide-tipped (HM).
| Supplied Spacer Rings Size and Quantity | |
|---|---|
| 0.1 mm | 4 pieces |
| 0.5 mm | 1 piece |
| 1 mm | 2 pieces |
| 3 mm | 2 pieces |
| 6 mm | 2 pieces |
| Features | |
|---|---|
| Diameter D | 35 mm |
| Total length L | 108 mm |
| Material | HM |
| Radius R1 / R2 | 6.4 / 4.8 mm |
| Shank diameter S | 8 mm |
| Cutting length B | 14 mm |
