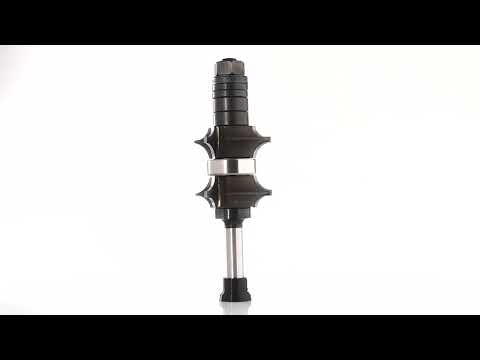

Double Radius Cutter
SISTEMI
20% Discount
20% Discount
€112.72*
€140.90*
You save €28.18!
Available, delivery time: 1-3 businessdays within Germany
Product number: 362050
Product information

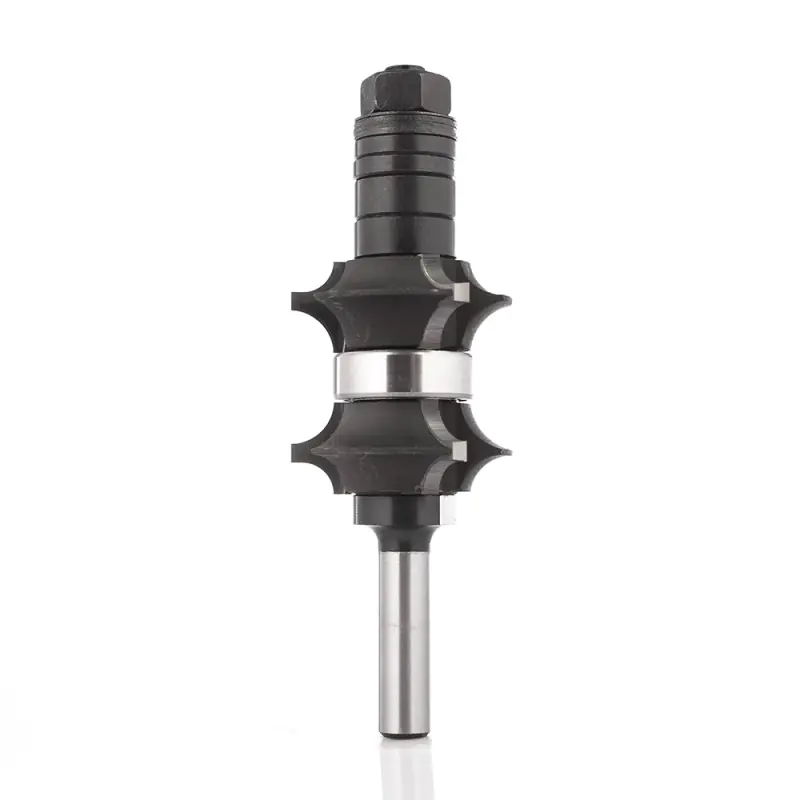

The double rounding cutter allows both edges of a board to be rounded in one operation. The center ball bearing has a diameter of 22 mm.
The supplied spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm. These allow the machining of board thicknesses from 9.5 to 35 mm or 12.7 to 38 mm depending on the radius (see sketch).
The double rounding cutters with guide ring from Sistemi Klein are carbide-tipped (HM).
| Supplied Spacer Rings Size and Quantity | |
|---|---|
| 0.1 mm | 4 pieces |
| 0.5 mm | 1 piece |
| 1 mm | 2 pieces |
| 3 mm | 2 pieces |
| 6 mm | 2 pieces |
| Features | |
|---|---|
| Diameter D | 35 mm |
| Total length L | 108 mm |
| Material | HM |
| Radius R1 / R2 | 6.4 / 4.8 mm |
| Shank diameter S | 8 mm |
| Cutting length B | 14 mm |
