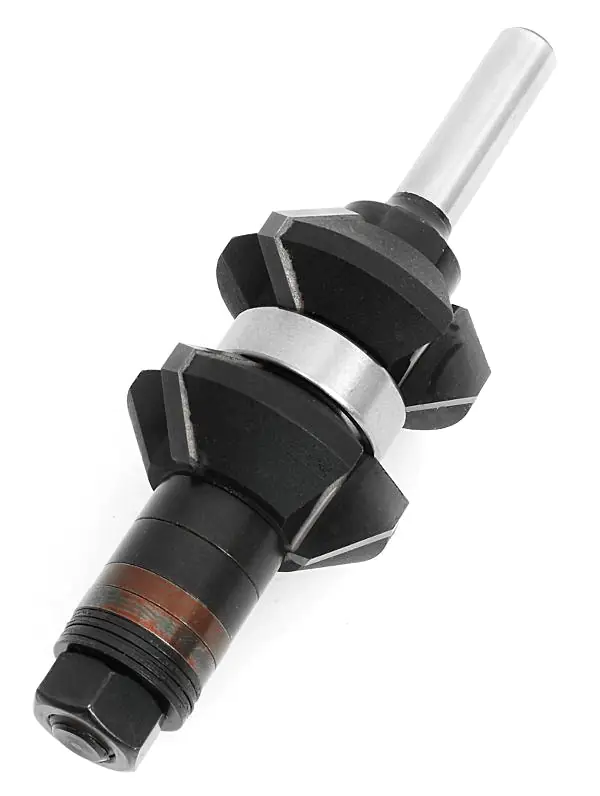

Double Chamfer Cutter Assembly
TCT D=35mm B=14mm Angle1=45° Angle2=30° L=108mm S=8mm KLEIN
25% Discount
25% Discount
€100.43*
€133.90*
You save €33.47!
Available, delivery time: 1-3 businessdays within Germany
Product number: 362065
Product information
With this tool, you can break both edges of a board in one operation. The ball bearing has a diameter of 22 mm.
The spacer rings have an outer diameter of 16 mm and an inner diameter of 8 mm. These allow the processing of board thicknesses up to 35 mm or up to 42 mm, depending on the angle (see sketch).
| Supplied Spacer Rings Size and Quantity | |
|---|---|
| 0.1 mm | 4 pieces |
| 0.5 mm | 1 piece |
| 1 mm | 3 pieces |
| 3 mm | 2 pieces |
| 6 mm | 2 pieces |
The double chamfer cutters with guide ring from Sistemi Klein are carbide-tipped (HM).
| Features | |
|---|---|
| Diameter | 35 mm |
| Total Length | 108 mm |
| Material | HM |
| Shank Diameter | 8 mm |
| Cutting Length | 14 mm |
| Angle | 45° / 30° |
