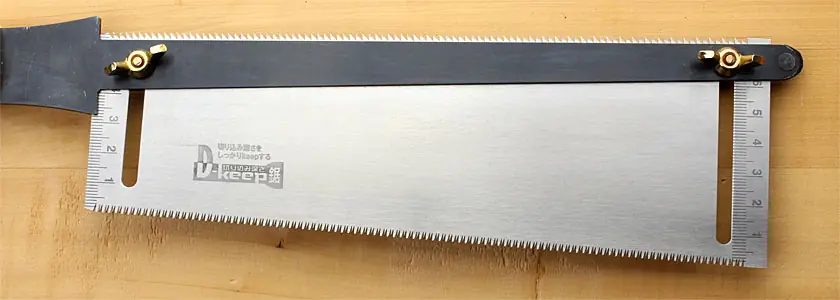

Depth adjustable Ryoba Saw Teeth on both Sides Blade Length
225 mm YOSHIWAKA
Available, delivery time: 2-3 days
Product information

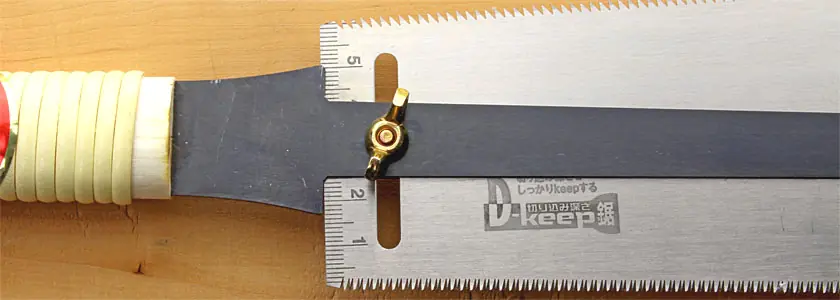

The cut is wider than the blade is thick because the saw teeth are set. This prevents the saw blade from binding in the wood. The scaling is printed. If the cutting depth needs to be set very precisely, you should use a steel ruler to assist. Made by the sawsmith Yoshiwaka in Miki, Prov. Hyogo.
This is thus a Ryoba with a much thinner blade than usual. Ryoba saws of this size typically have a blade thickness of 0.4 to 0.5 mm, resulting in a cut width of 0.6 to 0.7 mm. Compared to such standard Ryoba saws, significantly finer cuts are possible with this saw. However, the cutting depth is limited by the depth stop, which also serves as a stabilizing back.
| Properties | |
|---|---|
| Blade thickness | 0.3 mm |
| Blade length | 225 mm |
| Cutting width | 0.4 mm |
| Cutting depth at shaft | 42 mm |
| Cutting depth at front | 50 mm |
| Tooth pitch cross-section side | 1 mm |
| Tooth pitch longitudinal section side | 2 mm |
