Counterbore Bit - Pilot Diameter
12 mm Counterbore Diameter 40 mm T.C.T.
Available, delivery time: 2-3 days
Product information
The dowel cutters from Star-M in Japan are carbide-tipped for a long service life. They are indispensable in carpentry, timber house construction, cabin construction, carport construction, etc. All sizes have a hex shank with a diameter of 9 mm.
Recommended speed: 1000 – 1500 min-1
Dowel length: 70 mm
Shank length: 40 mm
Total length: 150 mm

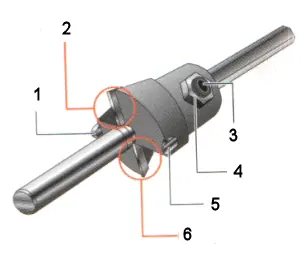

Sketch:
- carbide-tipped pilot cutter
- carbide-tipped main cutter
- Allen screw for attaching the countersink to the dowel
- locknut for stable hold
- carbide-tipped pilot cutter
- carbide-tipped main cutter
When the bearing surface of a screw nut needs to be countersunk because it must not protrude over the workpiece surface, these dowel cutters are the right tool. After the hole for the screws or threaded rods is drilled, this dowel cutter is used. The dowel with the same diameter as the drill hole serves as a secure guide for the cutting tool for the area to be countersunk. You can find auger bits in the appropriate size on our auger bit page!
The drill must have the same diameter as the guide dowel. For both dowel cutters and drills, you need a powerful drill machine; then this work can be done simply and effortlessly.
| Features | |
|---|---|
| Pilot pin diameter | 12 mm |
| Countersink diameter | 40 mm |
