Corner radius template
R10 -R35 ❘ BLACK-RED Plus ❘ DASQUA
Available, delivery time: 1-3 businessdays within Germany
Product information
The base body itself offers two radii to choose from, thanks to its sophisticated design: 30 mm and 35 mm.
Additionally, four more radii can be mounted using the respective inserts: 10, 15, 20, and 25 mm. Two knurled guide screws are positioned at the outermost points, while two more are screwed in at the positions that arise, depending on the radius.
Aluminum alloy, CNC machined, black anodized. The slightly matte surface texture makes the template comfortable to grip. Fingerprints do not adhere.

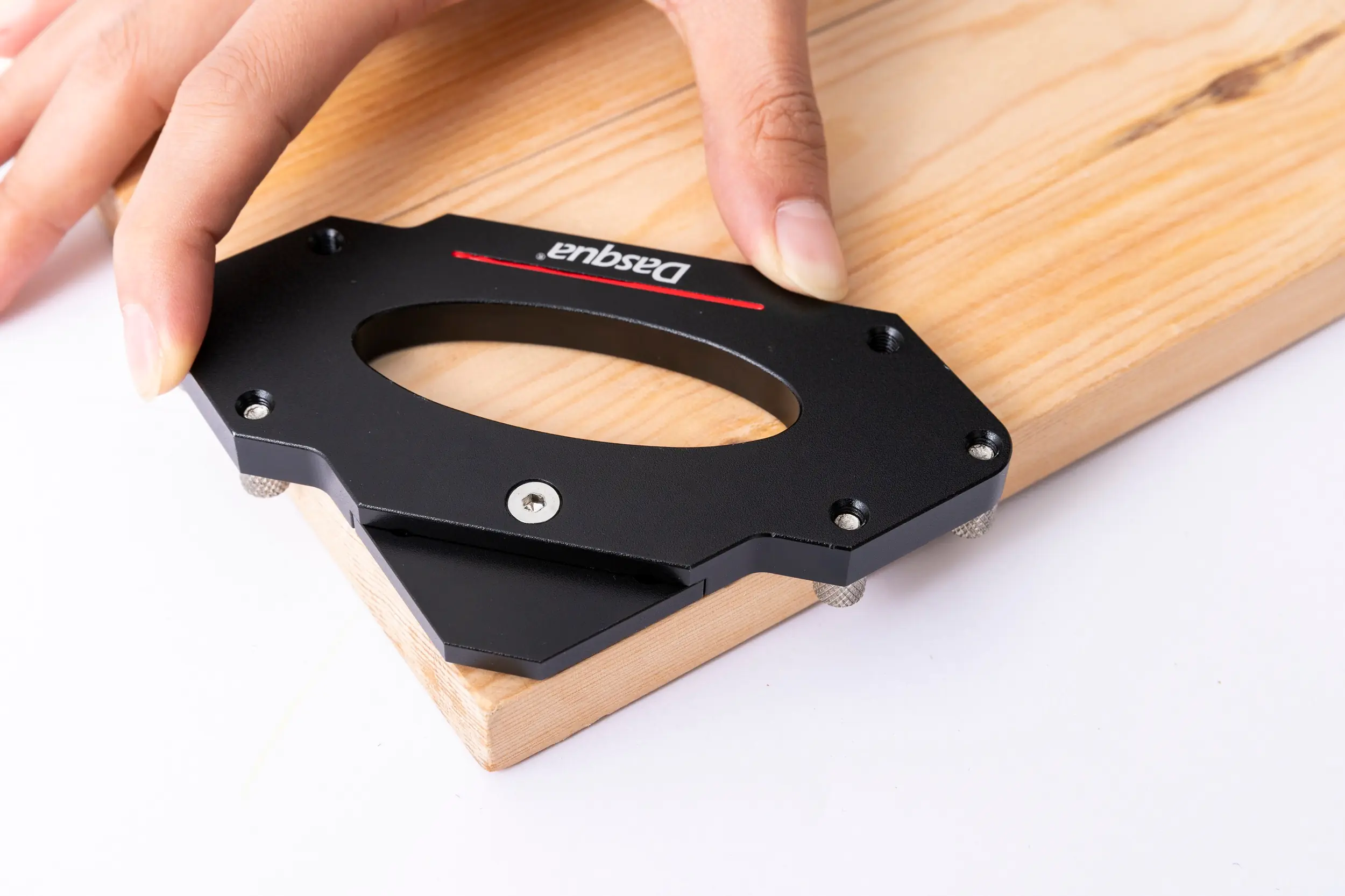

The elliptical cutout in the middle allows the template to be securely placed on the workpiece while working at the router table. Use in conjunction with the flush trim router bit guide ring „bottom”. When installed in a table, however, the ball bearing is „top”. Perhaps „end face” is a clearer term, rather than „shank side”.
Included in the delivery is a suitable 4 mm Allen key for securing the four interchangeable inserts, as well as a practical storage box made of transparent plastic.
*Dimensions of the main body:
*135 × 87 × 10 mm
*Possible radii:
*10, 15, 20, 25, 30, 35 mm
Features | |
---|---|
Main Body Dimensions | 135 × 87 × 10 mm |
Possible Radii: | 10, 15, 20, 25, 30, 35 mm |
