Classic Tail Vise (
TV Classic) BENCHCRAFTED
Available, delivery time: 2-3 days
Product information
The Classic Wagon Vise is the third from BENCHCRAFTED and comes with a 228 mm long vise handle, which is protected against rust by phosphating. Working with all BENCHCRAFTED wagon vises is extremely easy and fast. However, when larger clamping differences need to be overcome, the Classic cranks the fastest. The installation is the same for all wagon vises.

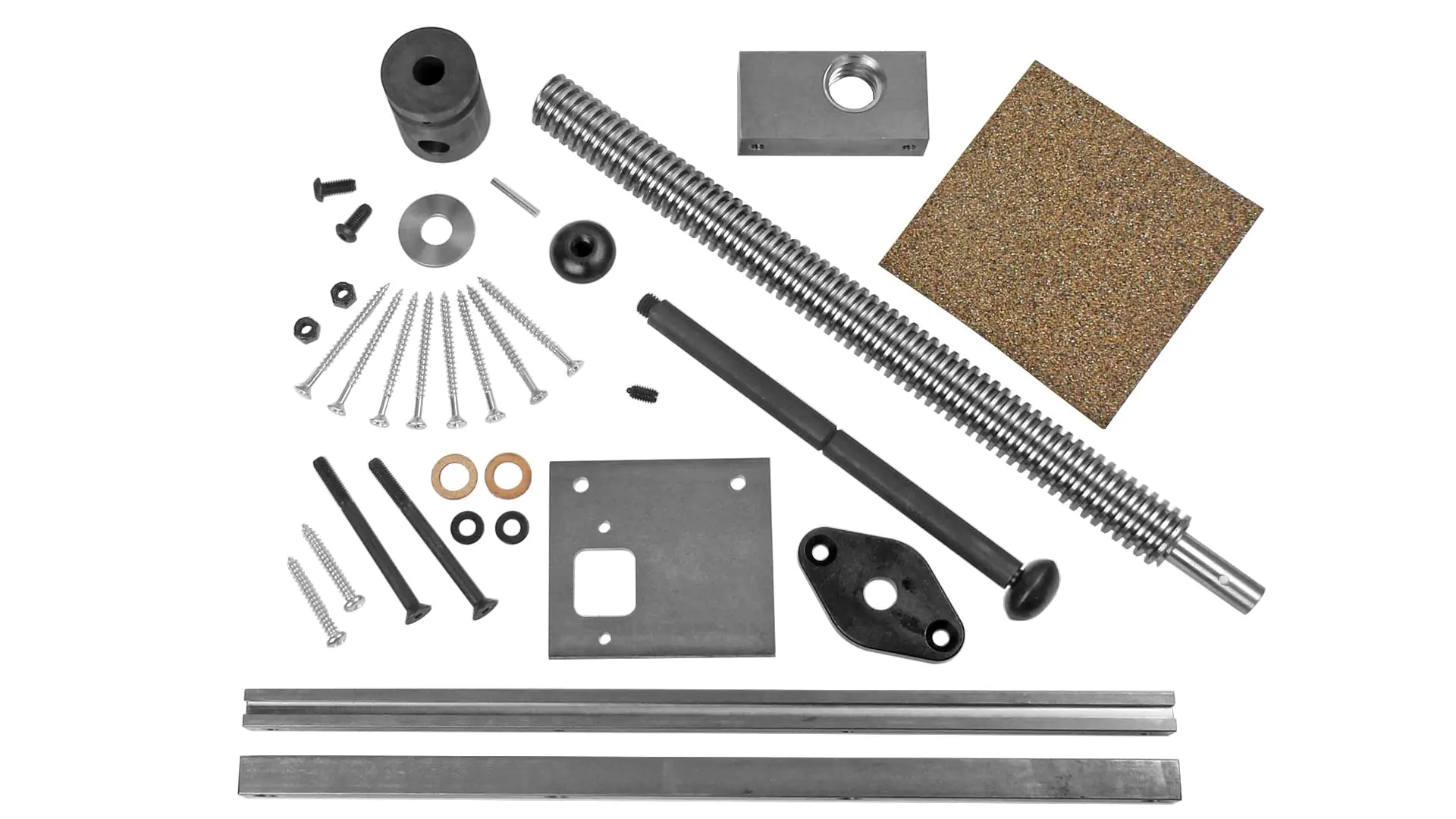

Contents of the Classic Wagon Vise:
- 1 9 inch (228 mm) vise handle with central V-groove
- 1 2 inch (51 mm) cylindrical vise handle receiver
- 1 1-1/4 precision acme screw (left hand thread)
- 1 1-1/4 Acme Nut (left hand thread)
- 1 Glide plate
- 1 Flange
- 1 large washer
- 1 dowel pin for attaching the vise handle receiver to the spindle
- 2 Guide rails
- 8 #12 × 3 inch screws for attaching the guide rails
- 2 5/16"-18 × 4" flat head screws with washers and lock nuts for the flange
- 2 5/16"-18 × 3/4 round head screws
- 2 1/4 × 2 panhead wood screws for attaching the sled
- 1 thick washer
- 1 piece of leather or crubber (a blend of cork and rubber) for the inside faces of the jaws (side of the sled and end of the sled track), 145 × 145 × 2 mm
| Properties | |
|---|---|
| Weight | 7.8 kg |
| Scope of delivery | large washer, glide plate, flange, thick washer, 9 inch (228 mm) wrench with center V-groove, 8 #12 × 3 inch screws for securing the guide rails, 2 inch (51 mm) cylindrical wrench holder, notch pin for securing the wrench holder to the spindle, 2 5/16"-18 × 4" countersunk screws with washers and lock nuts for the flange, 2 5/16"-18 × 3/4 round head screws, 2 1/4 × 2 panhead wood screws for securing the carriage, 1-1/4 precision acme screw (left hand thread), 1-1/4 Acme Nut (left hand thread), piece of leather or crubber (mix of cork and rubber) for the insides of the jaws (side of the carriage and end of the carriage track), 145 × 145 × 2 mm, 2 guide rails |
