Auger Bit Lewis Type Diameter =
5 mm Total Length = 320 mm FAMAG
Available, delivery time: 5-20 days
Product information
Achieve clean, tear-free holes with a flat bottom using the proven auger bits from FAMAG, available in drilling diameters up to 50 mm. Made in Remscheid, Germany.

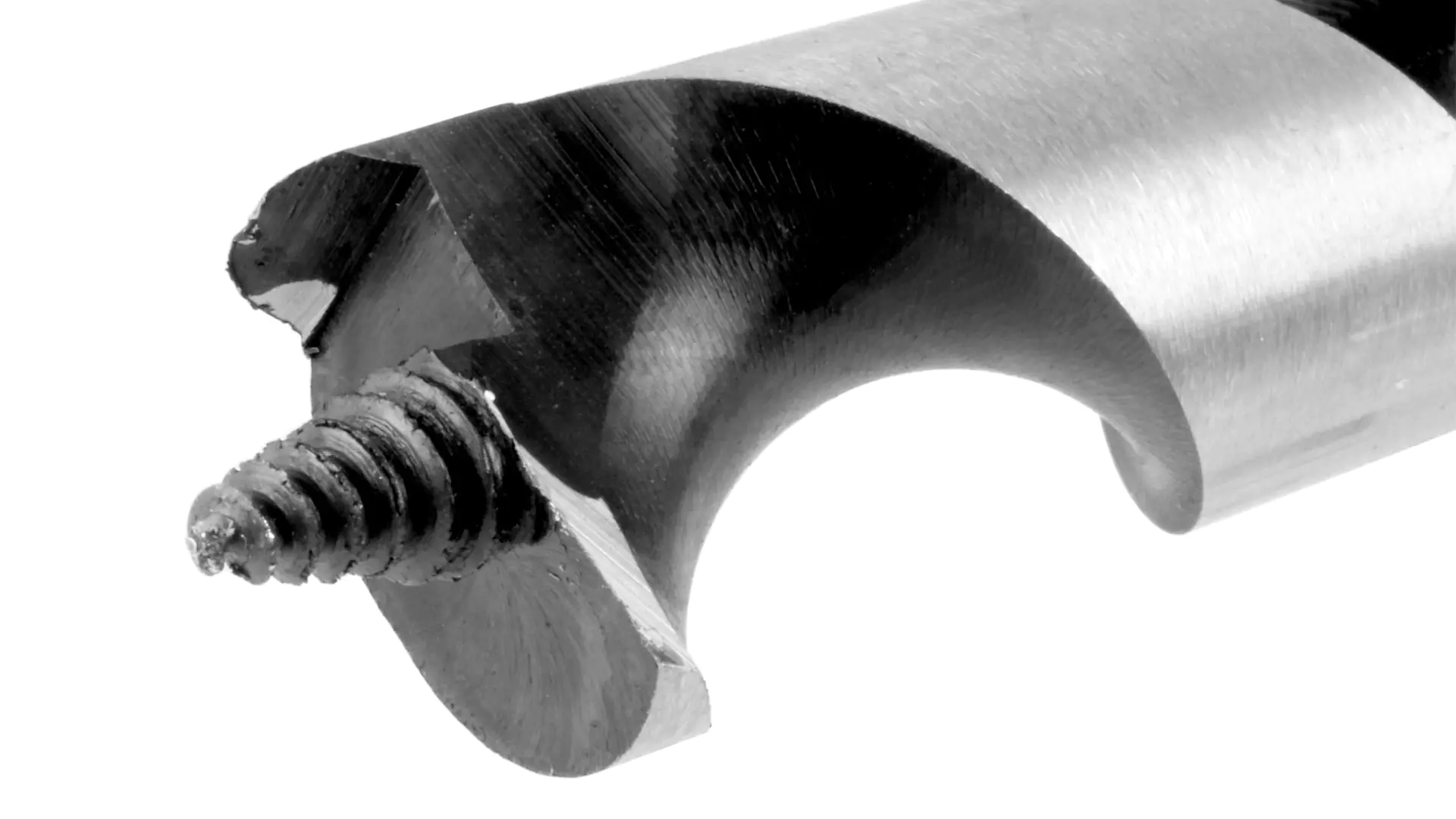

These bits feature a curved, pronounced pre-cutter that produces a clean edge even at slow speeds. The main cutting edge is designed like a chisel, rotating around the threaded tip, shaving off wood layer by layer within the circle cut by the pre-cutter. The threaded tip pulls the bit into the wood, requiring virtually no pressure.
These auger bits are suitable for all types of softwood and European hardwoods such as beech and oak. They are not suitable for extremely hard tropical wood. Avoid overheating the bit and „vent” frequently, i.e., pull the bit back with the drill running (do not pull it out) to aid chip removal and cool the bit. Work with minimal pressure!
Features:
- Lewis type
- 1 main cutting edge
- 1 pre-cutter
- Threaded tip
- D = 8 mm and larger: Hex shank
- D = 7 mm and smaller: Round shank
- Usable in robust cordless screwdrivers up to 24 mm diameter!
| Properties | |
|---|---|
| Diameter mm | 5 |
| Total length | 320 |
| Shank | 4.5 |
| Spiral length | 255 |
