Auger Bit Lewis Type Diameter =
5 mm Total Length = 235 mm FAMAG
Available in 14 days, delivery time 5-20 days
Product information
Achieve clean, tear-free holes with a flat bottom using the proven auger bits from FAMAG, available in drilling diameters up to 50 mm. Manufactured in Remscheid, Germany.

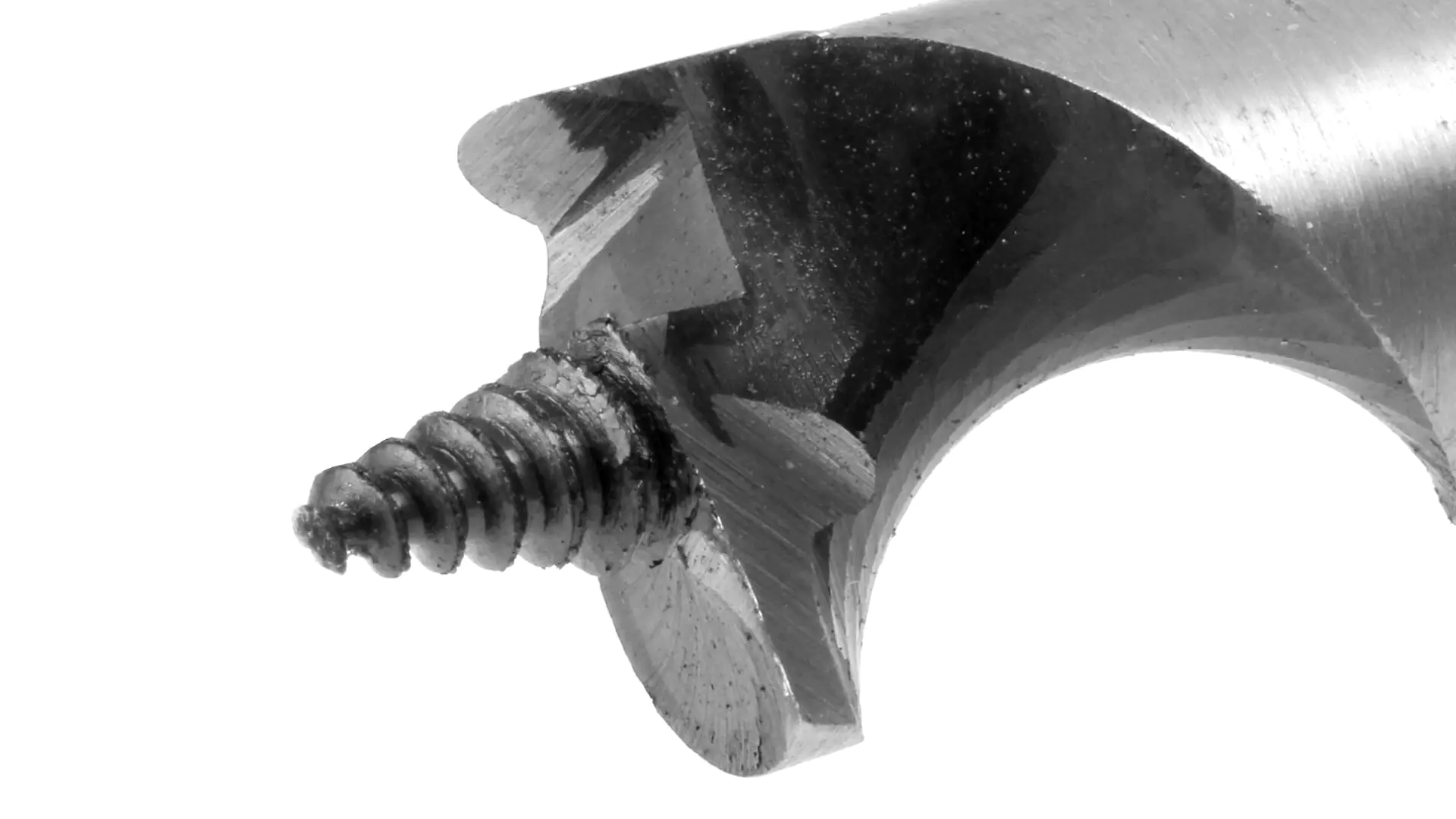

These bits feature a curved, pronounced pre-cutter that creates a clean hole edge even at slow speeds. The main cutting edge is shaped like a chisel, rotating around the threaded tip and shaving off layer by layer of wood within the circle cut by the pre-cutter. The threaded tip pulls the bit into the wood, requiring virtually no pressure.
These auger bits are suitable for all softwoods and European hardwoods like beech and oak. They are not suitable for extremely hard tropical woods. Do not let the bit overheat and „vent” it often, meaning pull the bit back with the drill running (do not pull out) to aid chip removal and cool the bit. Work with only little pressure!
Features:
- Lewis type
- 1 main cutting edge
- 1 pre-cutter
- Threaded tip
- D = 8 mm and larger: Hex shank
- D = 7 mm and smaller: Round shank
- Usable in powerful cordless screwdrivers up to 24 mm diameter!
| Features | |
|---|---|
| Diameter mm | 5 |
| Overall Length | 235 |
| Shank | 4.5 |
| Spiral Length | 160 |
