Klemmsia workbench adapter working height
150 mm for round holes 19 mm
Available, delivery time: 2-3 days
Product information

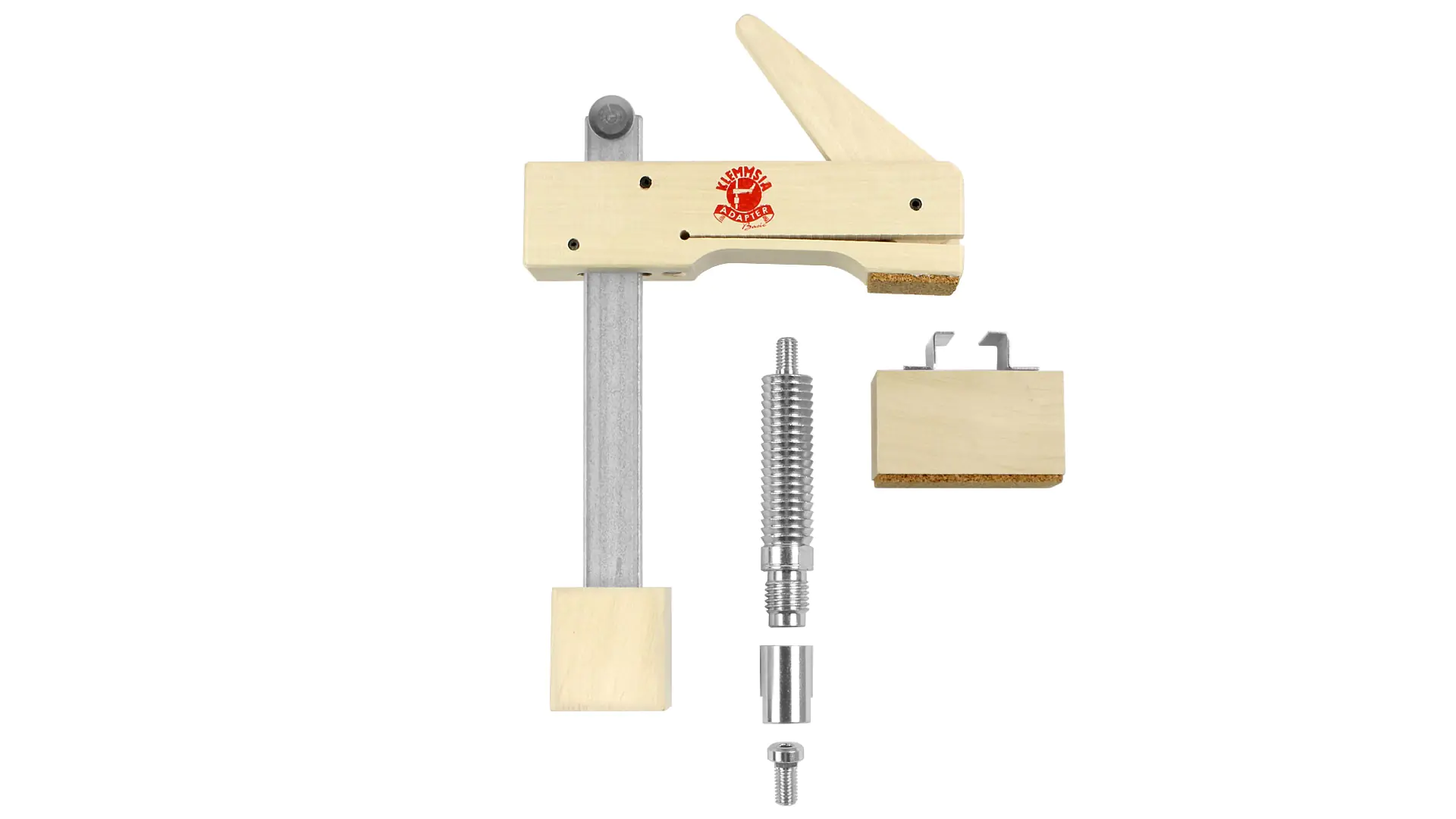

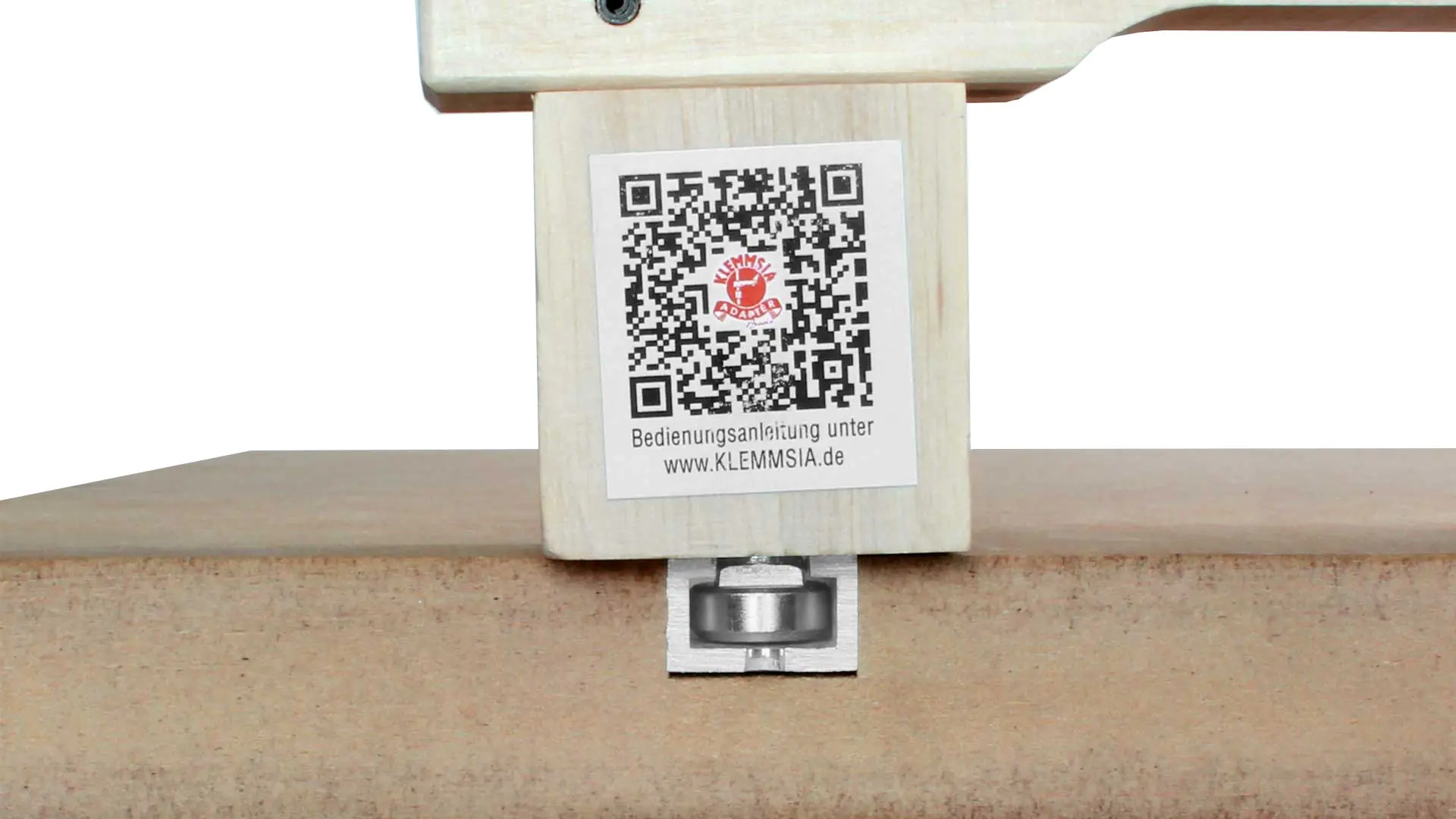

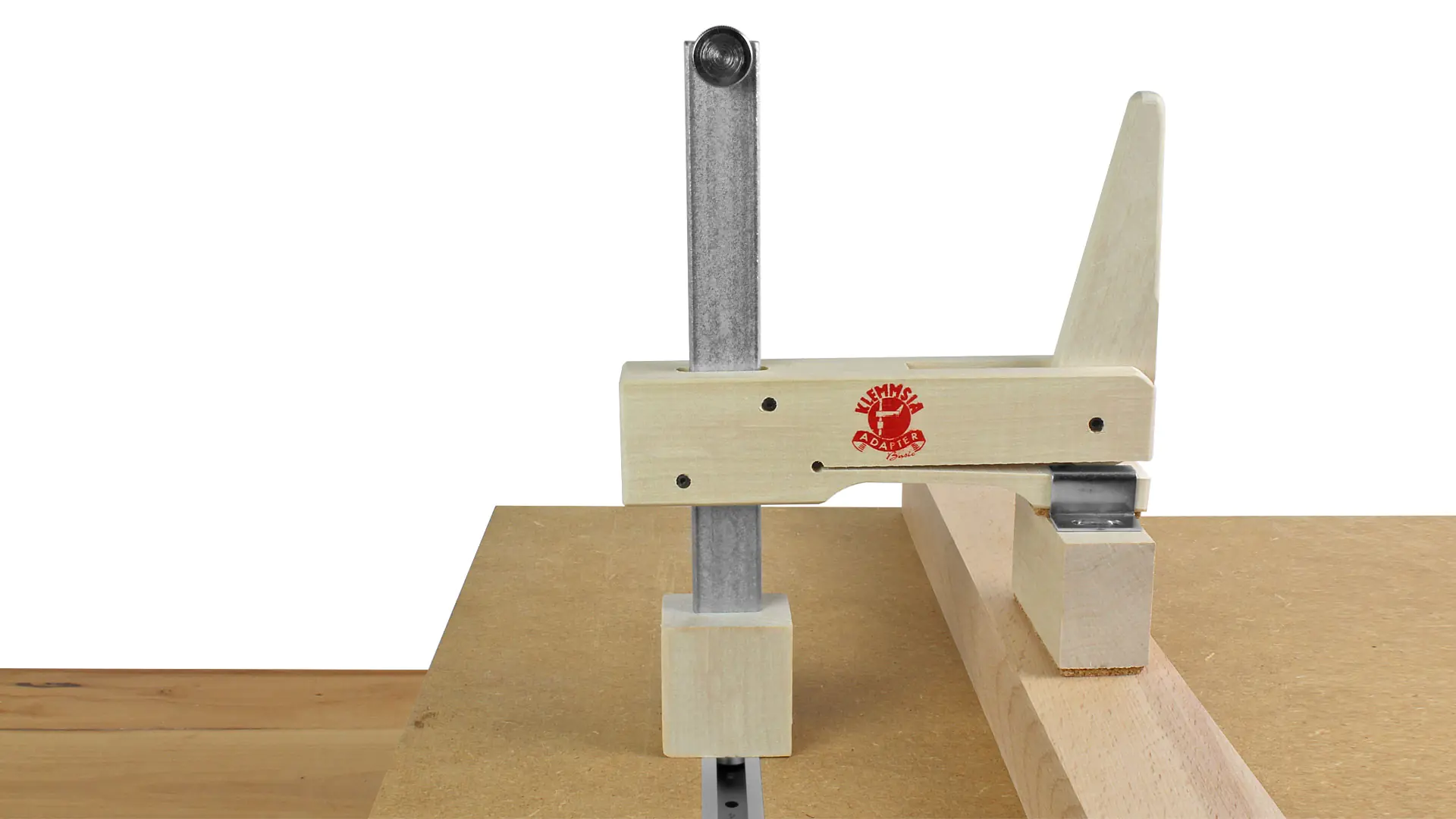

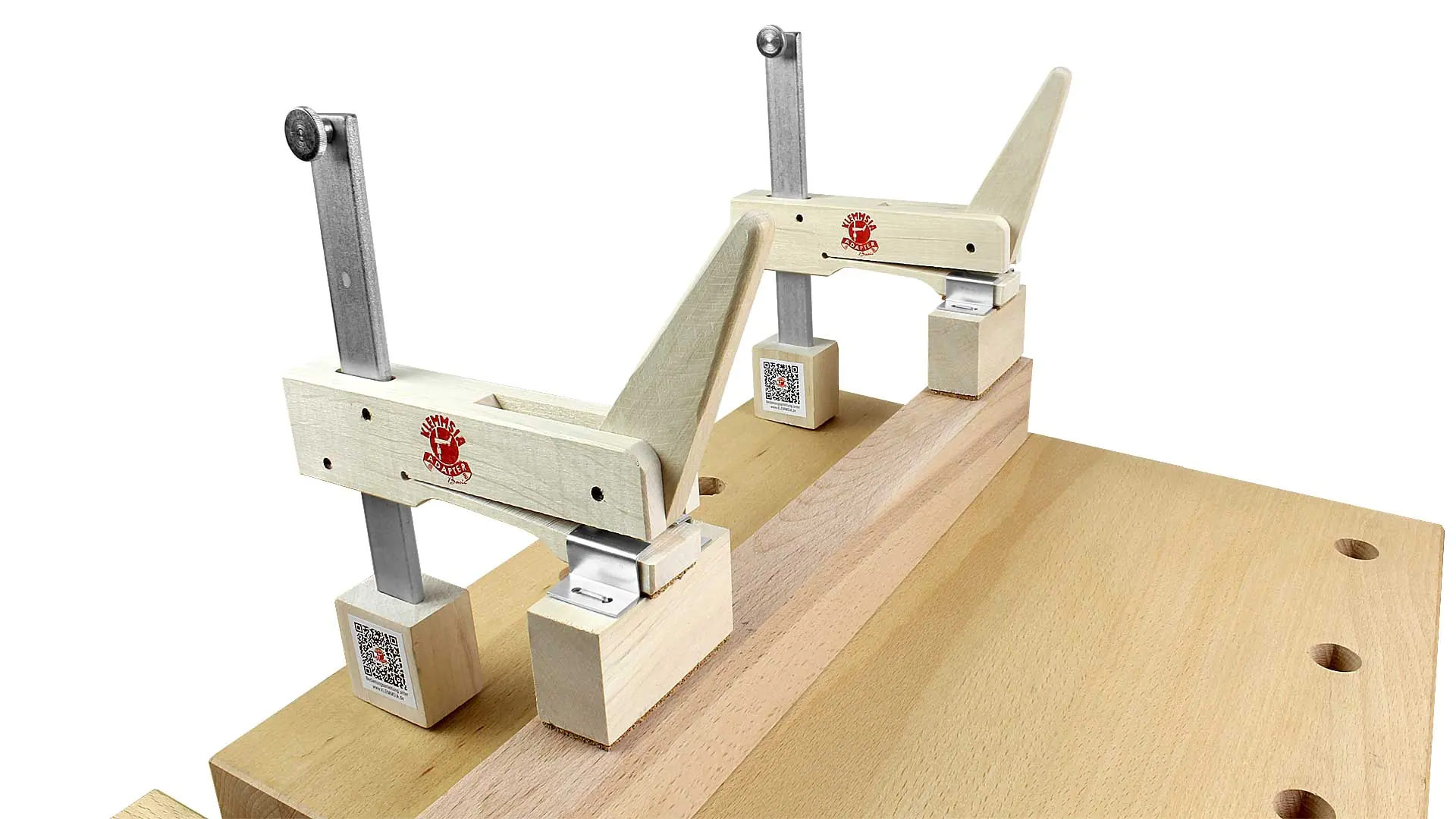

The basic body is essentially always the same and corresponds to the Klemmsia clamping system. The beechwood block, with a height of 40 mm and a cross-section of 37 × 29 mm at the lower end, rests directly on the workbench. Below it is the interchangeable dowel pin system. The clamp has a throat depth of 110 mm, and the included spacer has a height of 40 mm. The identical height with the beechwood block ensures that even very thin workpieces can be reliably clamped on the workbench. Included in the delivery is the KLEMMSIA M8 T-slot screw (No. 302257). This screw allows the Basic Adapter to be used in Aweso T-slot rails.
Features of the KLEMMSIA Adapter Basic Workpiece Hold-Down:
- Available clamping range in 150 mm and 250 mm
- Dowel pin length 89 mm
- Throat depth of the clamping arm 110 mm. Additional clamping arms with 150 and 195 mm throat depth are available
- Total weight: 540 to 800 g, depending on size
- Infinitely adjustable pressure via eccentric lever
- Non-slip even on curves and edges
- Stable and robust – made of beechwood and bright galvanized steel rail
- Environmentally friendly – wood parts left natural
- All corners rounded

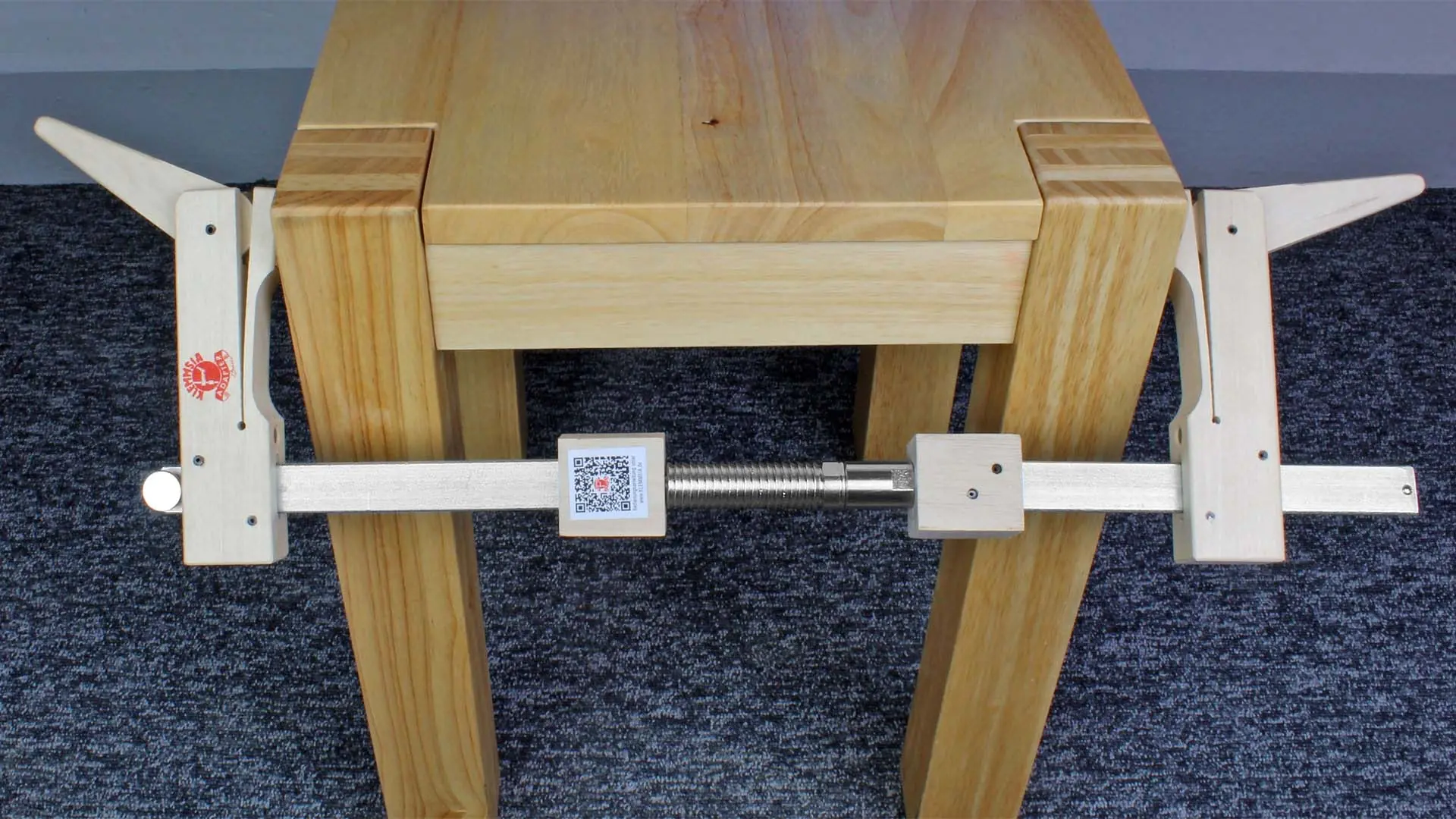

- Can be screwed together to form a full-fledged single clamp
- Ø 19, 20, and 22 mm suitable for table thicknesses 20 to 55 mm
- Ø 25.4 and 30 mm suitable for table thicknesses 40 to 120 mm
| Features | |
|---|---|
| Bore Diameter | 19 mm |
| Clamping Range | 150 mm |
| Pressure Adjustment | Continuously adjustable pressure via eccentric lever |
| Corners | All corners rounded |
| Suitable for Tabletop Thicknesses | 20 to 55 mm, 40 to 120 mm |
| Total Weight | 800 g, 540 g |
| Pin Length | 89 mm |
| Material | Bright galvanized steel rail, white beech wood |
| Slip Resistance | Non-slip even on curves and edges |
| Environmental Friendliness | Wooden parts left in their natural state |
| Screwability | Can be screwed together to obtain a fully functional single clamp |
