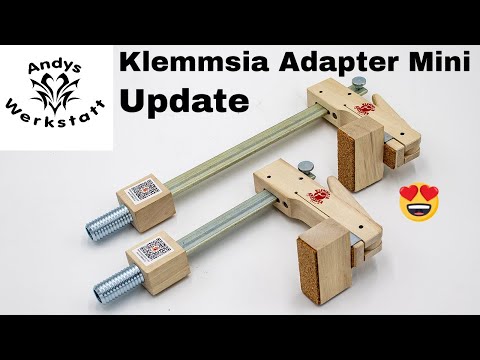

Klemmsia workbench adapter Basic mini working height
150 mm for round holes 25.4 mm
Available, delivery time: 2-3 days
Product information
The Adapter Basic mini differs from the Adapter Basic in that the dowels are only 42 mm long, making this Adapter Basic mini excellent for the now very popular multifunction tables, which often have a plate thickness of only 20 mm and are sometimes equipped with cabinets and drawers underneath, making the long dowels of the standard version somewhat unwieldy. Unlike the Adapter Basic, two Adapter Basic mini cannot be screwed together; their sole function is to clamp workpieces on the workbench. Clamping arms and beechwood block are the same as in the standard version.
The dowels are screwed to the beechwood base using the KLEMMSIA M8 T-slot screw (No. 302257). After removing the dowel, this screw can serve as a guide for our Aweso T-slot rails. So whether your multifunction table has round holes or T-slot rails or both: The KLEMMSIA Adapter Basic mini always fits!
Features of the Adapter Basic mini workpiece holder KLEMMSIA:
- Clamping range available in 150 mm and 250 mm
- Dowel length 42 mm, projection of the clamping arm 110 mm. Additional clamping arms with 150 and 195 mm projection are available
- Total weight: 380 to 600 g, depending on size
- Infinitely adjustable pressure via eccentric lever
- Non-slip even on curves and edges
- Stable and robust – made of beechwood and bright galvanized steel rail
- Environmentally friendly – wooden parts untreated
- All corners rounded
- Suitable for table top thicknesses 20 to 55 mm
- Suitable for the Aweso T-slot rails
| Features | |
|---|---|
| Hole Diameter | 25.4 mm |
| Clamping Range | 150 mm |
