PEGAS Swiss Fretsaw Blades

PEGAS Swiss Fretsaw Blades

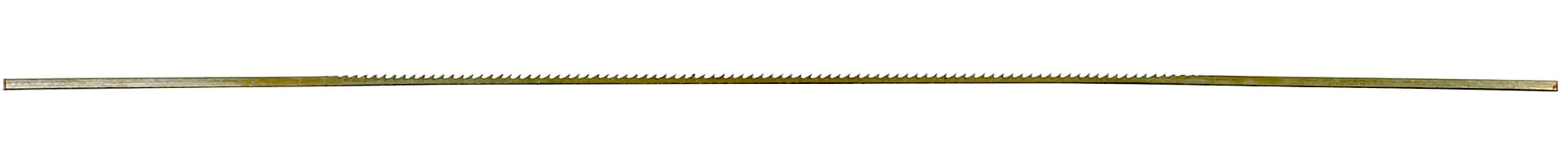

Pegas saws are manufactured in Switzerland from the best available carbon steels. They are heat-treated after machining the teeth, this being the only method for guaranteeing toughness and optimum flexibility.

Pegas Fretsaw Sets

PEGAS Fretsaw Blade Skip

PEGAS Fretsaw Blades Skip are a good all around versatile application blade. The range of sizes and teeth per inch allows the cutting of intricate patterns as well as rough-cut work. Thickness of work range from 1.5 mm (1/16 inch) to 60 mm (2.5 inch). Skip blades perform well with wood, plastic, bone, Corian and most fibrous materials. The blades provide good chip removal, will accept a fast feed rate and will give a smooth finish. Content: 1 dozen (12 pieces).

PEGAS Fretsaw Blades Skip
Skip Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
2/0 0.20 / .0078 0.65 / .026 130 / 5 11 28
Code 322200CartPrice € 1.84
1 0.24 / .09 0.78 / .031 130 / 5 9 23
Code 322202CartPrice € 1.84
3 0.30 / .0118 0.92 / .038 130 / 5 7.5 19
Code 322204CartPrice € 1.84
5 0.34 / .0145 1.08 / .0425 130 / 5 6.5 16.5
Code 322206CartPrice € 1.84
7 0.38 / .015 1.25 / .050 130 / 5 6 15
Code 322208CartPrice € 1.84
9 0.42 / .016 1.4 / .055 130 / 5 5.2 13
Code 322210CartPrice € 1.99
12 0.48 / .019 1.65 / .065 130 / 5 4.5 11.5
Code 322213CartPrice € 2.10

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Recommendations
Material:     • • • Recommended Use       • • Possible Use       • Not really recommended
Quality of finish:     + Medium       ++Good       +++Excellent
Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
2/0 322200 • • • • • • • • • • 1.5 - 4 mm yes yes yes +++ +++
1 322202 • • • • • • • • • • 2.5 - 8 mm yes yes yes +++ ++
3 322204 • • • • • • • • • • 4 - 10 mm yes yes yes +++ ++
5 322206 • • • • • • • • • • 8 - 15 mm no yes yes +++ ++
7 322208 • • • • • • • • • • 10 - 20 mm no yes yes +++ ++
9 322210 • • • • • • • • • • 12 - 25 mm no no yes +++ +
12 322213 • • • • • • • • • • 20 - 50 mm no no yes +++ +

PEGAS SUPER-SKIP Blade

Use the Pegas Super-Skip Sawblade when you want to achieve a smooth finish from an aggressive blade. Specially designed for hard and medium-hardwoods, Super-Skip also works perfectly on Acrylic with a reduced speed. The spaces between the teeth of the Super-Skip blade are wider than the normal skip-tooth configuration. This enables the blade to cut very quickly, leaving a smooth finish. The surface sawdust is whisked away and the edge remains clean.

PEGAS SUPER-SKIP Blade
SUPER
SKIP
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
2/0 0.20 / .0078 0.65 / .026 130 / 5 8.3 21.4
Code 322310CartPrice € 2.50
1 0.24 / .009 0.78 / .310 130 / 5 6.7 17.2
Code 322311CartPrice € 2.50
3 0.30 / .0118 0.92 / .038 130 / 5 5.8 14.8
Code 322312CartPrice € 2.50
5 0.34 / .0145 1.08 / .0425 130 / 5 5.0 12.8
Code 322313CartPrice € 2.50
7 0.38 / .015 1.25 / .050 130 / 5 4.4 11.3
Code 322314CartPrice € 2.75
9 0.42 / .016 1.40 / .055 130 / 5 4.0 10.1
Code 322315CartPrice € 2.95
11 0.46 / .018 1.61 / .064 130 / 5 3.6 9.2
Code 322316CartPrice € 2.95

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
2/0 322310 • • • • • • • • • • 1.5 - 6 mm yes yes yes +++ +++
1 322311 • • • • • • • • • • 2.5 - 8 mm yes yes yes +++ ++
3 322312 • • • • • • • • • • 4 - 10 mm yes yes yes +++ ++
5 322313 • • • • • • • • • • 8 - 15 mm no yes yes +++ ++
7 322314 • • • • • • • • • • 10 - 20 mm no yes yes +++ +
9 322315 • • • • • • • • • • 12 - 25 mm no no yes +++ +
11 322316 • • • • • • • • • • 20 - 40 mm no no yes +++ +

PEGAS Fretsaw Blade Double Tooth

PEGAS Fretsaw Blades Double Tooth are popular blades due to the excellent blend of the tooth/skip pattern. Double tooth blades contain sets of closely pitched teeth that aid in producing a fine finish and the skip adds the benefit of effective chip removal. Work thicknesses and materials are similar to regular skip blades. Content: 1 dozen (12 pieces).

PEGAS Fretsaw Blades Double Tooth
Double
Tooth
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
2/0 0.20 / .0078 0.65 / .026 130 / 5 10.25 26
Code 322215CartPrice € 1.95
1 0.24 / .09 0.78 / .031 130 / 5 8.3 21
Code 322217CartPrice € 1.95
3 0.30 / .0118 0.92 / .038 130 / 5 6.5 16.5
Code 322219CartPrice € 1.95
5 0.34 / .0145 1.08 / .0425 130 / 5 6 15
Code 322221CartPrice € 1.95
7 0.38 / .015 1.25 / .050 130 / 5 5.2 13
Code 322223CartPrice € 2.10
9 0.42 / .016 1.40 / .055 130 / 5 4.4 11
Code 322225CartPrice € 2.20

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
2/0 322215 • • • • • • • • • • • 2.5 - 8 mm yes yes yes +++ ++
1 322217 • • • • • • • • • • • 4 - 10 mm yes yes yes +++ ++
3 322219 • • • • • • • • • • • 8 - 15 mm yes yes yes +++ ++
5 322221 • • • • • • • • • • • 10 - 20 mm no yes yes +++ ++
7 322223 • • • • • • • • • • • 12 - 25 mm no yes yes +++ ++
9 322225 • • • • • • • • • • • 18 - 40 mm no no yes +++ +

PEGAS SUPER-HOOK Blade

The Pegas Super-Hook blade was developed for efficient cutting of thick hardwoods. It easily cuts up to 70 mm Beachwood (SUPER-HOOK no 16). The Super-Hook is the equivalent of a miniature band saw.

PEGAS SUPER-HOOK Blade
SUPER-
HOOK
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
12 0.50 / .0197 2.00 / .0787 130 / 5 3.3 8.5
Code 322320CartPrice € 3.25
16 0.50 / .0197 3.00 / .1181 130 / 5 2.63 6.68
Code 322322CartPrice € 3.75

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
12 322320 • • • • • • • • • • 20 - 50 mm no no yes ++ +
16 322322 • • • • • • • • • • 30 - 70 mm no no yes ++ +

PEGAS Fretsaw Blade Skip Reverse

PEGAS Fretsaw Blades Skip Reverse have the same basic tooth geometry as skip blades except that a limited number of reverse teeth have been added to the bottom of the blade. Reverse teeth prevent splinters from developing on the underside of the work piece because the top teeth do not cut entierly through the work. All operating parameters are the same as other blades. Content: 1 dozen (12 pieces).

PEGAS Fretsaw Blades Skip Reverse
Skip
Reverse
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
3R 0.33 / .013 0.88 / .035 130 / 5 5/3r 13/7r
Code 322229CartPrice € 2.50
5R 0.45 / .018 1.15 / .045 130 / 5 4.75/3.5r 12/9r
Code 322230CartPrice € 2.50
7R 0.45 / .018 1.15 / .045 130 / 5 4/3r 10/7r
Code 322231CartPrice € 2.75

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
3R 322229 • • • • • • • • • • 4 - 10 mm yes yes yes +++ +++
5R 322230 • • • • • • • • • • 8 - 15 mm no yes yes +++ +++
7R 322231 • • • • • • • • • • 10 - 20 mm no yes yes +++ +++

PEGAS Fretsaw Blade Special Skip Reverse

PEGAS Fretsaw Blades Special Skip Reverse have the same basic tooth geometry as skip blades except that a limited number of double skip reverse teeth have been added to the bottom of the blade. Reverse teeth prevent splinters from developing on the underside of the work piece because the top teeth do not cut entierly through the work. All operating parameters are the same as other blades. Content: 1 dozen (12 pieces).

PEGAS Fretsaw Blades Special Skip Reverse
Special
Skip
Reverse
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
3SPR 0.32 / .0125 0.85 / .033 130 / 5 5/3 13/7
Code 322240CartPrice € 4.25
5SPR 0.38 / .015 0.93 / .037 130 / 5 5/3 13/7
Code 322241CartPrice € 4.25
7SPR 0.42 / .017 1.10 / .043 130 / 5 4/3 10/7
Code 322242CartPrice € 4.45

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
3SPR 322240 • • • • • • • • • • • • • 8 - 15 mm no yes yes +++ +++
5SPR 322241 • • • • • • • • • • • • • 10 - 20 mm no yes yes +++ +++
7SPR 322242 • • • • • • • • • • • • • 12 - 25 mm no yes yes +++ +++

PEGAS Fretsaw Blade Spiral Tooth

PEGAS Fretsaw Blades Spiral Tooth provide cutting around the entire periphery of the blade due to a helical shape. This design allows work to be fed in straight moves. The work does not have to be turned to make cuts, so sharp inside corners can be created. Excellent for wood, plastic, metals, bone, wax, and more. Content: 1 dozen (12 pieces).

PEGAS Fretsaw Blades Spiral Tooth
Spiral
Tooth
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
2/0    0.70 / .027 130 / 5 22 56
Code 322250CartPrice € 2.95
1    0.80 / .032 130 / 5 19 48
Code 322252CartPrice € 3.30
3    1.05 / .041 130 / 5 16 40
Code 322254CartPrice € 2.95
5    1.08 / .043 130 / 5 14 35
Code 322256CartPrice € 3.20

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
2/0 322250 • • • • • • • • • • • • 1.5 - 4 mm yes yes yes
1 322252 • • • • • • • • • • • • 2 - 5 mm yes yes yes
3 322254 • • • • • • • • • • • • 2 - 6 mm yes yes yes
5 322256 • • • • • • • • • • • • 2 - 7 mm yes yes yes

PEGAS Scrollsaw Blade Regular

PEGAS Scrollsaw Blades Regular are designed as a utility blade for a broad range of applications. These blades are compatible for use in C-arm and parallel power scroll saws. Good for hard and soft wood, up to 20 mm thick. Content: 1 dozen (12 pieces).

PEGAS Scrollsaw Blades Regular
Regular
Scroll
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
  0.50 / .020 3 / .118 130 / 5 6 15
Code 322264CartPrice € 3.20

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
  322264 • • • • • • • • • 8 - 50 mm no no yes ++ +

PEGAS Pinned Scrollsaw Blade Skip

PEGAS Pinned Scrollsaw Blades Skip have a skip tooth pattern for effective chip removal. These blades have good performance for use with power scroll saws such as Sears, Craftsman, Delta, and Ryobi. Content: 6 pieces.

PEGAS Pinned Scrollsaw Blades Skip
Pinned
Skip
Scroll
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
  0.25 / .010 2 / .080 127 / 5 7.5 18.5
Code 322276CartPrice € 2.95

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
  322276 • • • • • • • • • • • • 4 - 30 mm no no yes ++ +

PEGAS Pinned Hook Scrollsaw Blade

PEGASPinned Hook Scrollsaw Blades have a hook tooth pattern. These blades have good performance for use with power scroll saws such as Sears, Craftsman, Delta, and Ryobi. Specially for fast straight cuts. Content: 6 pieces.

PEGAS Pinned Hook Scrollsaw Blades
Pinned
Hook
Scroll
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
  0.50 / .020 3 / .118 127 / 5 2.75 7
Code 322280CartPrice € 2.95

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
  322280 • • • • • • • • • • • • 10 - 75 mm no no yes ++ +

PEGAS Metal Cutting Fretsaw Blade

PEGAS Metal Cutting Fretsaw Blades are high quality blades for precise cutting of thin metals up to 3 mm (.125 inch) thick and for other hard, nonmetallic materials. They are specifically heat treated to give maximum performance with power scroll saws. Can be used in hand frames also. Content: 1 dozen (12 pieces).

PEGAS Metal Cutting Fretsaw Blades
Metal
Cutting
Thick-
ness
mm / inch
Width
mm / inch
Length
mm / inch
Teeth
per cm
TPI CodePrice
3/0 0.24 / .010 0.48 / .019 130 / 5 23.5 59
Code 322300CartPrice € 2.95
1 0.3 / .012 0.63 / .025 130 / 5 19 48
Code 322303CartPrice € 2.95
3 0.36 / .014 0.74 / .029 130 / 5 16 40
Code 322305CartPrice € 2.95
6 0.42 / .017 0.94 / .037 130 / 5 13.5 34
Code 322308CartPrice € 2.95

Recommendations:
Material: • • • Recommended Use, • • Possible Use, • Not really recommended
Quality of finish: + Medium, ++Good, +++Excellent

Size Code Hard-
woods
Medium
Hard-
woods
Soft-
woods
Ply-
wood
Corian
Plastics
Alum.
Brass
Copper
Ferrous
metals
Recomm.
Material
Thickness
Intricate
cuts
Tight
turns
Light
turns
Surface
finish
Under-
side
finish
3/0 322300 • • • • • • • • • • 1.5 - 4 mm yes yes yes ++ ++
1 322303 • • • • • • • • • • 1.5 - 5 mm yes yes yes ++ ++
3 322305 • • • • • • 2 - 7 mm yes yes yes ++ ++
6 322308 • • • • • • 2.5 - 10 mm no yes yes ++ ++

PEGAS Set Fretsaw Blades Standard

This Fretsaw Set with Standard and Spiral Blades is a good selection for general work and if you want to try what is bsest for your projects. This set includes 36 blades as listed below.

set Double Tooth nr. 1
Double Tooth Nr. 3
nr. 322217
nr. 322219
6 piece
6 piece
set Skip Tooth nr. 3
Skip Tooth nr. 5
nr. 322204
nr. 322206
6 piece
6 piece
set Spiral Tooth nr. 5 Nr. 322256 6 piece
set Metal Cutting nr. 3 Nr. 322305 6 piece
Code 322330CartPrice € 7.95

PEGAS Set Fretsaw Blades Reverse

This Fretsaw Set with Reverse and Spiral Blades is best for testing what is appropriate foryour projects. This set includes 36 blades as listed below.

set Skip Reverse nr. 3R
Skip Reverse nr. 5R
Nr. 322229
Nr. 322230
6 piece
6 piece
set Special Skip Reverse
nr. 7R
ohne Nr. 6 piece
set Special Skip Reverse
nr. 1SPR
Special Skip Reverse
nr. 3SPR
no item nr.


Nr. 322240
6 piece


6 piece
set Spiral Tooth nr. 5 nr. 322256 6 piece
Code 322331CartPrice € 8.95
You are here:   Homepage   →   Western Type Saws   →   PEGAS Swiss Fretsaw Blades
