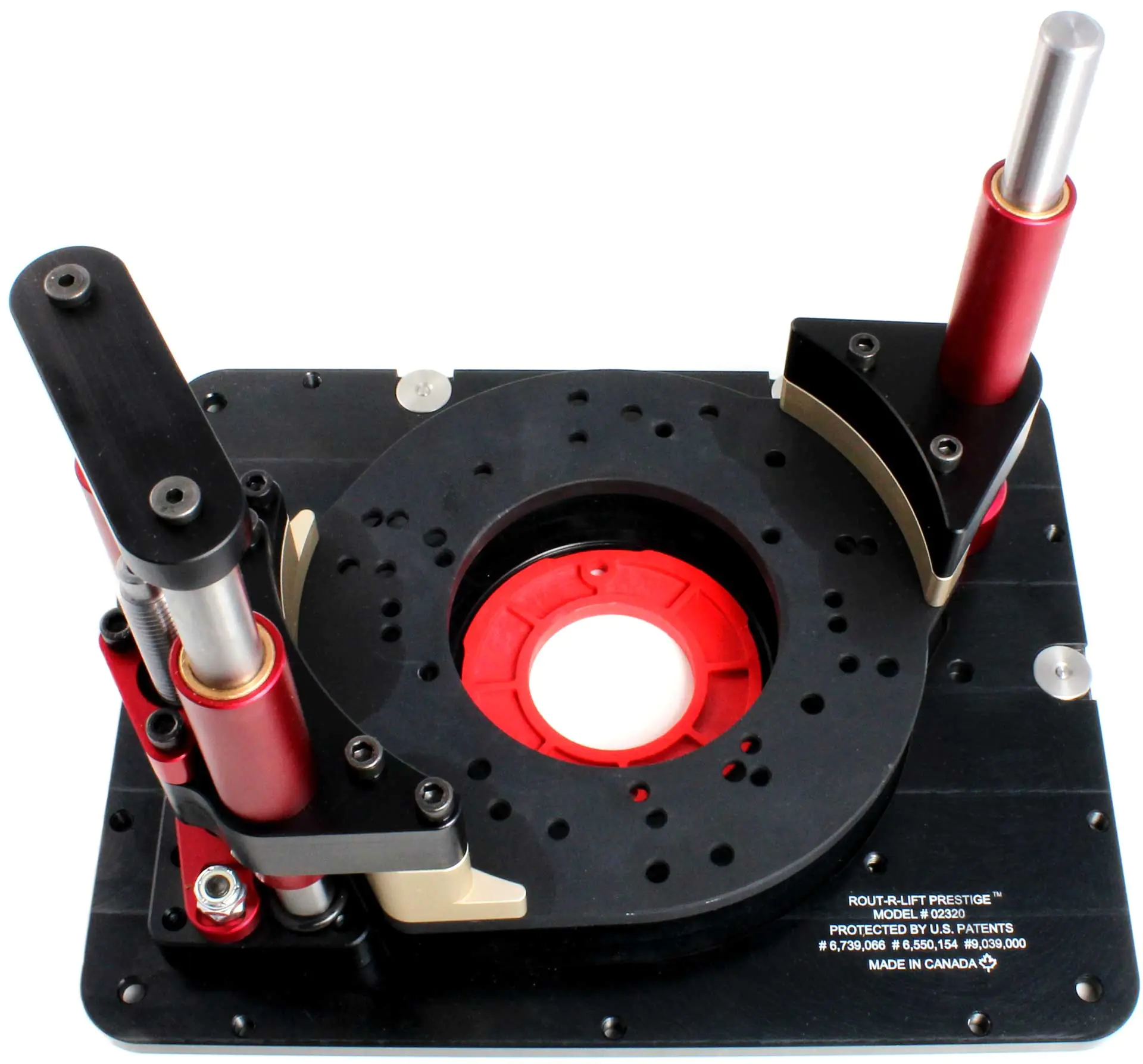

JessEm Rout-R-Lift Prestige

Finally, a router lift that fits many routers! Here, an American manufacturer has considered the European market, taking into account that in Europe, a design principle prevails where the router motor is firmly connected to the router base. In this lift, the router base of the router is directly screwed onto a mounting ring on the underside. Made from aluminum cast parts commonly used in aircraft construction, a highly precise device was created for clamping and fine-tuning routers.

The Rout-R-Lift Prestige allows you to quickly and very precisely adjust the height of the router bit (routing depth) using an included crank. The adjustment is conveniently made from above. You can also change the router bit from above.

JessEm uses a proven system with a total of five sealed ball bearings on the adjustment screw and the lock for this model. The result is a high level of smooth operation. The lock, which is closed with a quarter turn, is also operated from above (with the hand crank for height adjustment) and ensures that the height setting does not change during routing.

The router plate made of anodized aluminum measures 298 × 235 mm with a thickness of 9.5 mm. It is compatible with all Incra router tables. The included red insert ring made of fiberglass-reinforced polycarbonate has a central hole with a diameter of 51 mm and is fixed in the router plate using a supplied key. We recommend ordering additional insert rings to suit every router bit size.

The router is simply mounted with the router base on the round mounting ring on the underside of the lift. The necessary screws for the models listed below are included in the delivery.

Note: All routers lose some routing depth due to the lift plate. In this router lift, it is 15 mm minus the removable glide plate, e.g., with the Makita 3 mm = 12 mm loss.

The underside mounting ring of this lift is pre-drilled for these routers:

• Festool OF1010 EQ
• Festool OF1400 EQ
• DeWalt 625
• ELU 3337-9
• Makita RP2301/RP2300
• Hitachi M12V
• Bosch 1617/1604
• Bosch 1617/1613
